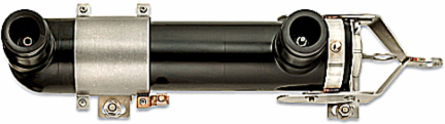

Thomas & Betts MCAN-4B-15-22-PS Molded Canister Fuses
- MPN: MCAN-4B-15-22-PS
- UPC: 078378633601
- PPN: T-B-MCAN-4B-15-22-PS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fuse Canister for Fuses HTFX230003, HTFX230006, HTFX230008, HTFX230010, HTFX230012, HTFX230018, HTFX230020, HTFX230025, HTFX230030, HTFX230040 and HTFX230050, 21.49 inches long, with PS option for parking stand. 8.3kV, 3-50 Amps. 200 Amp Bushing Wells on each end
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | Fuses are Fully Sealed and Submersible |
| Standard | ANSI C37.40, ANSI C37.41, ANSI C37.47, ANSI/IEEE 386 |
| Material | EPDM Rubber Housing |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | Molded Canister Fuses |
| Application | Padmount, Subsurface and Vault Applications |
| Size | 21.49 inch Length |
| Mounting | Parking Stand |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
