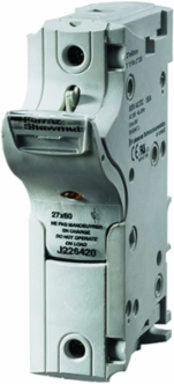

Mersen T227602 Fuse Holder UltraSafe™ 800VAC 800VDC UL Fuse size 27x60 2-Pole Visual Indicator 2x Microswitch Faston Lugs IP20
- MPN: T227602
- PPN: FER-T227602
CAD
$230.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe as per IEC standards to an IP20 grade of protection. Including fuse changing, with the flick of a finger. Modular fuse-holders are available in 1, 2 or 3 poles, with or without visual blown fuse indicators, in IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. The range offers the possibility to use microswitches (supplied with the holders or ordered separatly) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material.
Specifications
Key Specifications
- Rated voltage AC UL
- 800 V
- Rated voltage AC IEC
- 800 V
- Ampere Rating
- 140 A
- AC or DC
- AC/DC
- Design Details
- double pole, 2 microswitches
- Indication System Type
- Visual Indicator Microswitch
- Torque Rating
- 30.978 lb-in
- Rated Insulation Voltage
- 800 V
- Installation Mounting
- DIN rail acc. EN 60715
- Width
- 3.15 in
- Height
- 5.88 in
Rated voltage DC UL800 V
Rated voltage DC IEC800 V
ROHS CompliantYes
Fuse Size27x60
Indication SystemYes
Number of Poles2-Pole
Rated Impulse Withstand Voltage8 kV
Max Power dissipation of Fuse Links Pn11 W
Conventional Free Air thermal Current With Fuse-Links Ith140 A
Length3.68 in
Weight0.668 lb
