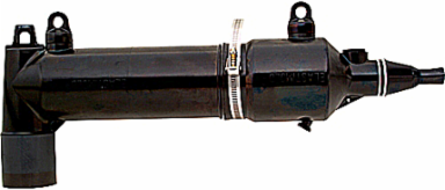

Thomas & Betts 274FLR3-D0270 Loadbreak Fused Elbow Connector with Test Point
- MPN: 274FLR3-D0270
- UPC: 783786522507
- PPN: T-B-274FLR3-D0270
CAD
$2762.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Capactive Test Ports, Large Housing, Cable Insulation Diameter 0.890 inch - 1.220 inch / 25-31mm, Aluminum Conductor size 4/0 AWG Stranded Compressed
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 25/28kV Loadbreak Elbow Switching.
- Standard
- IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47
- Conductor Range
- 4/0 Stranded Compressed, 250 kcmil Solid Compact
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
IGCC4586 Electrical connector assembly
TypeLoadbreak Fused Elbow Connector with Test Point
ApplicationProtect Light Duty Underground Distribution Systems
SizeLength 21.12 inches from bottom to center of Bushing
MaterialEPDM Rubber
Voltage Rating15.5/16.2kV
InsulationYes, EPDM Rubber
Consist OfElbow Connector Housing, Crimp Connector, Probe Lug, Tube of Lubricatn, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
