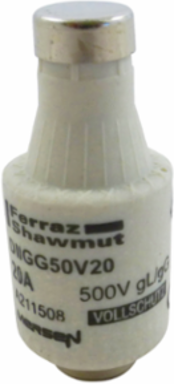

Mersen A211508 Fusible DII Fuse Link, 500VAC, 20A, Ceramic, Blue Indicator
- MPN: A211508
- PPN: FER-A211508
CAD
$17.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

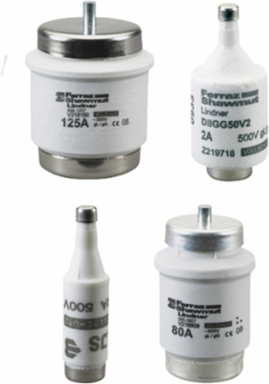

The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.
Specifications
Key Specifications
- Rated voltage AC IEC
- 500 V
- Ampere Rating
- 20 A
- ROHS Compliant
- Yes
- Speed/Characteristic
- gG
- Mounting
- Clip
- Indication System
- Yes
- Body/Insulating Material
- Ceramic
- Length
- 1.97 in
Rated voltage DC IEC500 V
Identification Color CodeBleu
AC or DCAC/DC
Fuse SizeDII
AC Max I.R./Breaking Capacity: I150 kA
Indication System TypeColored indicator flag Visual Indicator
Power Dissipation at Rated Current Value2.1 W
Weight0.059 lb
