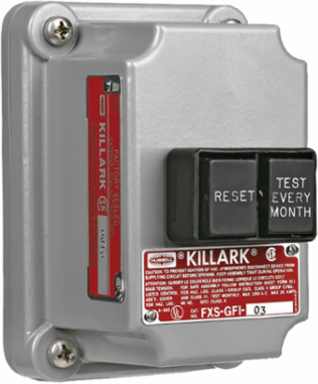

Killark FXS-GFIO3 Aluminum Ground Fault Interrupter Cover Assembly 20A/120Vac/60Hz 6.75 x 6.125 x 5 Inch
Killark FXS-GFIO3 Aluminum Ground Fault Interrupter Cover Assembly 20A/120Vac/60Hz 6.75 x 6.125 x 5 Inch
- MPN: FXS-GFIO3
- UPC: 783936198255
- PPN: HBL-FXS-GFIO3
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1794.45/ EA
Description
FXS Series - Aluminum Ground Fault Interrupter Cover Assembly - Factory Sealed - 20A/120Vac/60Hz - 4-6 Miliamp Trip Setting
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- United States
- Depth
- 5-1/8 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.75 in
- Actuator
- Gound Fault Interupter
- Application
- FXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations.
- Number of Poles
- 2
- Special Features
- Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Width
- 6.125 in
- Nema Rating
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FACT.SEALED GFI 20A 5MA TRIP
- Harmonization Code
- 8536308000
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D251
- Gross Weight with Packaging
- 3.2
- Series
- FXS-GFI Series
- BOX SIZE
- 5.000x6.750x6.125 (in)
- Master Pack Description
- Each
Back Box TypeFXB
Dimensions6.75 in x 6.125 in x 5 in
Height5 in
ActionPush buttons
Amperage Rating20 A
ColorGray
Size6.75 in x 6.125 in x 5 in
TypeAluminum Factory Sealed Ground Fault Interrupter Cover Assembly
Frequency Rating50/60 Hz
Number Of Poles2
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11712
UL File NumberE53360, E10501
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936198255
Certifications
- EU RoHS Indicator
- Contact Manufacturer
