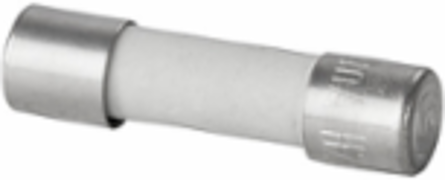

Weidmuller 0430600000 G 20/0.50A/F
- MPN: 0430600000
- PPN: WDM-0430600000
CAD
$1.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Active components, Fuse
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5 mm |
|---|---|
| Height | 20 mm |
| Net weight | 0.9 g |
| Width (inches) | 0.197 inch |
|---|---|
| Height (inches) | 0.787 inch |
Material Data
| Colour | Light Grey |
|---|
Classifications
| ETIM 6.0 | EC000035 |
|---|---|
| eClass 9.0 | 27-14-20-01 |
| eClass 10.0 | 27-14-20-01 |
| ETIM 7.0 | EC000035 |
|---|---|
| eClass 9.1 | 27-14-20-01 |
| UNSPSC | 30-21-18-14 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | Fuse accessories |
|---|
Rating Data
| Rated voltage | 250 V |
|---|
| Rated current | 0.5 A |
|---|
Fuse Cartridges
| Cartridge fuse | G-Si. 5 x 20 |
|---|---|
| Colour | Light Grey |
| Melting integral | 0.23 A2s |
| Rated breaking capacity | 1.5 kA |
| Voltage drop | 600 mV |
| Characteristics | quick-acting |
|---|---|
| Current | 0.5 A |
| Power output (@ 1.5 In) | 1 W |
| Version | Fuse accessories |
