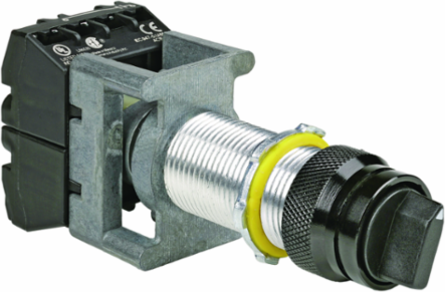

Killark GO30-33F G Series Aluminum SPDT Snap Switch Operator 10A, 6.31 Inch x 2.25 Inch x 1.25 Inch
- MPN: GO30-33F
- UPC: 783936223407
- PPN: HBL-GO30-33F
- UNSPSC: 39122216
CAD
$556.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Length | 6.31 in |
| Actuator | Snap Switch |
| Application | G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. |
| Size | 6.31 in x 2.25 in x 1.25 in |
| Type | Specialty |
| Frequency Rating | 50/60 Hz |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | SNAP SWITCH SPDT 3-WAY |
| Harmonization Code | 8536509040 |
| Lead Time | 20 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D250 |
| CSA File Number | LR11714 |
| UL File Number | E10501 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936223407 |
| NAICS Code | 3353146142 |
| Dimensions | 6.31 in x 2.25 in x 1.25 in |
|---|---|
| Height | 1.25 in |
| Action | SPDT (3-way) |
| Amperage Rating | 10 A |
| Number of Poles | 1 |
| Special Features | Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified |
| Width | 2.25 in |
| Number Of Poles | 1 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 0.4 |
| Series | GO Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
