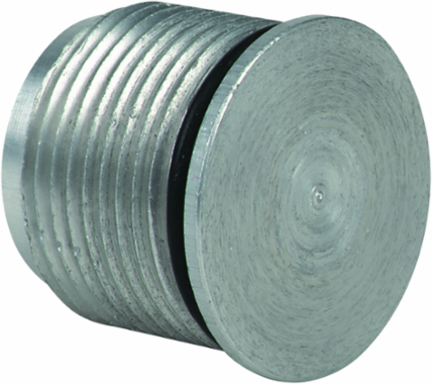

Killark GO-8177 G Series Hole Plug 3/4 Inch NPSM for Hazardous Locations
- MPN: GO-8177
- UPC: 783936220444
- PPN: HBL-GO-8177
- UNSPSC: 39122216
CAD
$77.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Length | 6.31 in |
| Application | For use with G Series custom control panel operators. |
| Special Features | Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified |
| Width | 2.25 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 3/4"-14 NPSM HOLE PLUG |
| Harmonization Code | 7616995190 |
| Lead Time | 15 wk |
| Order Multiple | 5 EA |
| Sub Class Code | D25D250 |
| CSA File Number | LR11714 |
| UL File Number | E150827 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.350 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 |
| NAICS Code | 3359326103 |
| Dimensions | 6.31 in x 2.25 in x 1.25 in |
|---|---|
| Height | 1.25 in |
| Action | Plug |
| Size | 6.31 in x 2.25 in x 1.25 in |
| Type | Hole Plug |
| Nema Rating | 3, 4, 4X |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 0.07 |
| Series | GO Series |
| BOX SIZE | 2.000x6.750x2.250 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936220444 |
| Master Pack Description | Each |
