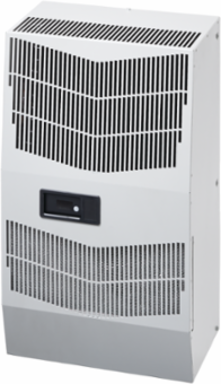

nVent Hoffman G280426G150 SpectraCool Outdoor with Heat G28, 4000BTU 230V, Lt Gray, Steel
- MPN: G280426G150
- UPC: 783510209384
- PPN: HOF-G280426G150
- UNSPSC: 40101701
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SpectraCool Air Conditioners deliver reliable enclosure cooling in full spectrum of environments. This SpectraCool Outdoor with Heat G28, G280426G150 item is rated 4000BTU 230V with material of Steel color Lt Gray.
Features
- Attractive industrial design with minimal use of visible fasteners
- Advanced Corrosion Protection Level 1 (ACP L1) Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Energy-efficient rotary compressor on most models
- Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes: Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
- Galvanized or stainless steel cover for rugged factory and outdoor environments
- Exterior and partially recessed mounting options
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Btu/h | 4,900 |
| Number of Phases | 1 |
| Material | Mild Steel |
| Remote Access Control | No |
| Protection Rating | NEMA Type 4 |
| Height (H) | 726 |
| Depth (D) | 259 |
| Thickness (T) | 1 |
| Product Family | SpectraCool |
| NEMA Rating | 4 Watertight |
| Sub Brand | SpectraCool |
| BTU Rating | 4,600 |
| Frequency Rating | 50/60 Hz |
| Color | Lt Gray |
| Nominal Capacity Watts | 1,435 |
|---|---|
| Nominal Voltage | 230 |
| Refrigerant | R407C |
| Operating Temperature | -40 |
| Corrosion Resistant | No |
| Outdoor Installation | Yes |
| Width (W) | 432 |
| Finish | Powder Coated |
| Mounting | Side wall |
| Color Code | RAL 7035 |
| Weight | 96.5 |
| Voltage Rating | 230 V |
| Amperage Rating | 4.6/5.8 Amp |
| Phase | 1 Ph |
