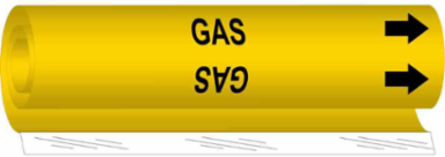

Brady 5698-II GAS Pipe Marker, 26" H x 12" W, Fits Pipes 2.5" Dia. Thru 7.875" Dia.
- MPN: 5698-II
- UPC: 754473572334
- PPN: BRD-5698-II
- UNSPSC: 55121737
CAD
$22.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-689 Pipemarkers from Brady® are coiled printed plastic sheets with sealed color graphics
Features
- Designed for use on rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Style II wrap-around pipe markers fit pipes with outside diameter of 2-1/2" to 7-7/8"
- Resistant to UV light exposure, high humidity, high temperatures, abrasion, chemical reagents and physical agitation
- Excellent chemical resistance
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- Curved; Rough
- Language
- English
- Pipe Marker Mounting Style
- Wrap Around
- Pre-Printed Areas on Label
- Pipe Contents & Pictograms
- Printer and Label Applications
- Pipe Marker
- Brady Material Number
- B-689
- Label Properties
- Harsh Environment Labels
- Material
- Coiled Plastic
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; UV-Resistant
- Average Outdoor Durability
- 5 to 8 Years
- Dimensions
- 26 in H x 12 in W
- Dimensions 2
- 26 in H x 12 in W
- Height (mm/cm/m)
- 66.04 cm
- Maximum Outside Pipe Diameter (mm/cm/m)
- 200.03 mm
- Maximum Service Temperature °F
- 248 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 63.5 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 26 in H x 12 in W
- Size
- II
- Thickness (mm/cm/m)
- 0.152 mm
- Width (mm/cm/m)
- 30.48 cm
Arrow DirectionRight
ColorBlack on Yellow
Enables Industry ComplianceANSI A13.1-2007
Pictogram DescriptionArrow Symbol
Pipe Marker StyleII
Primary Noun, Basic FunctionPipe Marker
Text LegendGAS
Indoor or Outdoor UseOutdoor Use
LaminatedPolyester Overlaminate
Material PropertiesSelf-laminating
SAP B-NumberB-689
Character Height (in/ft/yd)1.25 in
Dimensions (Metric)66.04 cm H
Height (in/ft/yd)26 in
Maximum Outside Pipe Diameter (in/ft/yd)7.875 in
Maximum Service Temperature °C120 °C
Minimum Outside Pipe Diameter (in/ft/yd)2.5 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 2.5" Dia. Thru 7.875in Dia.
Sign Size-General26 in x 12 in
Thickness (in/ft/yd)0.006 in
Width (in/ft/yd)12 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
