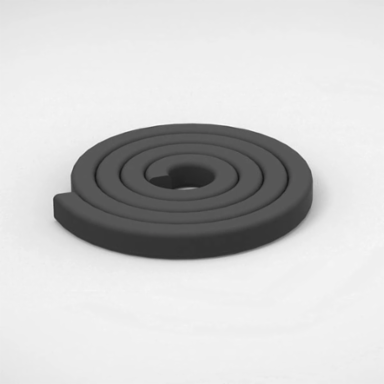

nVent Hoffman BGE01 EMC Cable Entry Gasket Kit, 2,130mm Depth, Black Foam, Smooth Finish
- MPN: BGE01
- UPC: 783510452476
- PPN: HOF-BGE01
CAD
$618.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A gasket that maintains the enclosure's protection degree when installing cables and while increasing flexibility. This EMC Cable Entry And Bottom Plate Gasket, BGE, BGE01 item measures 17x17x2130mm has a material of Foam color Black, finish Smooth.
Features
- Description: The bottom of the enclosure is sealed by the use of an adhesive gasket applied to the frame around the bottom opening. The cables are sealed by the addition of adhesive foam placed between the bottom plates. The elasticity and the size of this foam ensures a tight seal around most cables. Added conductive material provides a good contact to shield the transfer of electro-magnetic radiation.
- Pack quantity: 2 m adhesive EMC gasket for cable entry. For 1600 mm wide enclosures please order 2 sets.
- The elasticity and the size of this foam ensures a tight seal around most cables
- Added conductive material provides a good contact to shield the transfer of electro-magnetic radiation
- The EMC gasket is used to seal the space between the floor standing enclosure's bottom plates
- The empty space around installed cables when routed between the bottom plates CBPE, can be sealed to maintain the enclosure's protection degree and EMC rating
- The enclosure's protection degree is maintained avoiding the need to use EMC cable glands
- The gasket increases the customers flexibility when installing cables, as the cable diameter does not necessarily need to be identified in advance
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 17
- Works With
- IEC
- Product Family
- Free-Standing
- Finish
- Smooth
Height (H)17
Depth (D)2,130
Enclosure MaterialGalvanized Steel
MaterialFoam
ColorBlack
