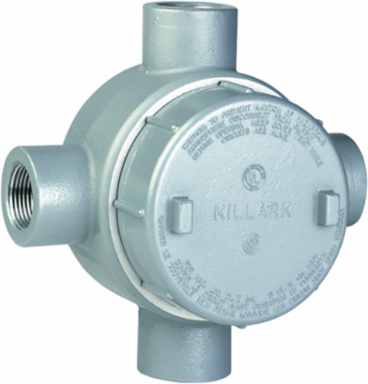

Killark GECXT-2-6TB GEC-TB 2-¾ ID RD Body, "X" ¾" Hubs ,Qty 8, 2.5mm2 #12 AWG Panel Mount, UL/CSA, Class I, II, III, BCDEFG, Type 4 IP66, Terminal Box
- MPN: GECXT-2-6TB
- UPC: 783936210414
- PPN: HBL-GECXT-2-6TB
- UNSPSC: 39121314
CAD
$403.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
GEC-TB 2-¾ ID RD Body, "X" ¾" Hubs ,Qty 8, 2.5mm2 #12 AWG Panel Mount, UL/CSA, Class I, II, III, BCDEFG, Type 4 IP66, Terminal Box.
Features
- Water shedding cover-suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Weather-resistant finish.
- Green ground screw standard in all boxes.
- Weidmuller 6 point MK3 terminal block is mounted inside box on raised X type pad.
- Box and cover are made of copper free aluminum.
- Electrostatically applied gray powder coating.
- Cover o-ring Nitrile gasket.
- GE series is your go to for harsh and hazardous outlet bodies. They offer the best protection for threaded rigid conduits and aid in pulling and splicing wire. The GE series is offered in copper-free aluminum and tri-cost finish Duraloy iron with our electro-statically applied paint for the most corrosive resistance formula.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- US
- Width
- 4.000 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4"
- Color
- Gray
- Size
- 5.563 in x 4 in x 5.563 in
- Type
- Outlet Body With Cover & Terminal Block
- Class Code
- D30
- Freight Class Code
- 06168002
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- Hub Pattern
- X
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions5.563 in x 4 in x 5.563 in
Each - Width4.000 in
Height5.563 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length5.563 in
Special FeaturesGE series is your go to for harsh and hazardous outlet bodies. They offer the best protection for threaded rigid conduits and aid in pulling and splicing wire. The GE series is offered in copper-free aluminum and tri-cost finish Duraloy iron with our electro-statically applied paint for the most corrosive resistance formula.
Finish TypePeinture époxy en poudre
Description - InvoiceGECXT-2 W/ 6 POINT TERMINAL
Harmonization Code8536900020
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging2.5
UL File NumberE10514
SeriesGE
Carton - SCC-14 Next Lower Level Sub Pack00783936210414
Certifications
- EU RoHS Indicator
- Contact Manufacturer
