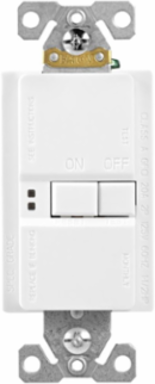

Eaton SGFD20W Eaton blankface GFCI — Color: White, Device Type: Receptacle Blankface
- MPN: SGFD20W
- UPC: 032664750069
- PPN: COW-SGFD20W
CAD
$38.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton Blankface GFCI,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,White,Brass,Blankface,Thermoplastic,Two-pole,Three-wire,Two-pole, three-wire, grounding
Documentation & Downloads
Specifications
Key Specifications
- Length
- 2.041 in
- Width
- 2.97 in
- Nom Product Type
- Blankface GFCI
- Type
- Self-test
- Voltage Rating
- 125V
- Wiring Method
- Back and side wire
- NEMA Configuration
- 5-20R
- Number Of Wires
- Three-wire
- Number Of Poles
- Two-pole
- Face/Body Material Pvc
- Thermoplastic
- Product Series
- Gfci Receptacles
Height4.751 in
Weight0.01 lbs
Device TypeReceptacle Blankface
Amperage Rating20A
ApplicationResidential. Commercial
Allowable Wire Size#14 - 10 AWG
Torque Rating16 lbf-inch
Mounting MethodFlush
ColorWhite
Receptacle TypeTwo-pole, three-wire, grounding
