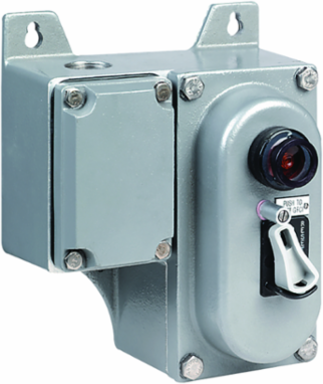

Killark GFCS30301 Aluminum Ground Fault Control Station 30A Breaker 120VAC 1 Inch NPT
- MPN: GFCS30301
- UPC: 783936112701
- PPN: HBL-GFCS30301
- UNSPSC: 39122216
CAD
$4501.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
GFCS Series - Aluminum Feed-Thru 1-Pole Ground Fault Control Station -Factory Sealed - 30 Milliamp Trip - 30A Breaker - 120VAC - Hub Size 1Inch NPT
Features
- Factory Sealed Ground Fault Chamber (Assemblies in Group B areas must be sealed within 6" of enclosure. Other area classification do not require the use of seals).
- 1" NPT top and bottom conduit openings.
- External Push-to-Test Button and Pilot Light for monitoring.
- ON-OFF_TEST-Reset External Handle can be locked in ON-OFF positions.
- 5ma Ground Fault Circuit Breaker for People Protection.
- 30ma Ground Fault Circuit Breaker for Equipment Protection and heat tracing circuits.
- Electrical Rating 120VAC (single pole), 120/240VAC (two pole), 10,000AIC.
- Suitable for indoor/outdoor use to provide a degree of protection against rain, sleet, windblown dust and damage from external ice formations.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Operating Temperature Celcius Max
- 40 Degree
- Action
- SP
- Amperage Rating
- 30 A
- Color
- Gray
- Mounting
- Wall
- Special Features
- Suitable for indoor/outdoor use to provide a degree of protection against rain, sleet, windblown dust and damage from external ice formations.
- Weight
- 13 lb.
- Enclosure Type
- Bolted
- Frequency Rating
- 60 Hz
- Nema Rating
- 3, 7(B, C, D), 9(E, F, G)
- Number Of Wires
- 2
- Sensitivity
- 30mA
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR061895-2
- Gross Weight with Packaging
- 13
- Indicator(s) Type
- Pilot Light
- Series
- GFCS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Depth8.5 in
Height7.875 in
Primary Voltage120 VAC
ActuatorMiniature Circuit Breaker Operator with Reset
ApplicationGFCS Series of ground fault control stations are used for the additional safety of personnel, and for equipment protection in remote areas.
EnclosureBolted
Number of Poles1
TypeGFCI
Width7.375 in
Finish TypePowder-Coated Polyester Epoxy
Mounting TypeWall
Number Of Poles1
Reset TypePushbutton on MCB Handle
ARRA CompliantContact Manufacturer
Description - Invoice1P 30MILLIAMTRIP 30BREAKER AMP
Harmonization Code8536200020
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD25D251
Factory SealedFactory Sealed
UL File NumberE83969
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936112701
NAICS Code3353133104
Certifications
