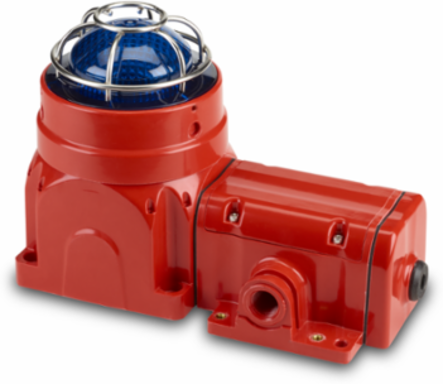

Federal Signal G-LED-AC-E-B-R Global Series LED Light, Hazardous Location, UL and cUL CID2, Zone Listed, 120-240VAC, Ex de Surface Mount, Blue, Red enclosure

Federal Signal's patented Global Series® LED Beacons feature long-life LEDs with the ability to select one of (8) flash patterns(user-configurable) and offer two lens options (low- or high-profile). The device is rated to the latest protection concept, "Ex op is" (inherently safe optical radiation). The housing is made from GRP (Glass Reinforced Polyester), designed to serve the demanding needs of offshore marine and land-based industrial applications.The Global Series LED Beacons flameproof "Ex d" versions come standard with (2) M20 entries. The increased safety "Ex de" versions include separate terminal chambers for quick field termination or pass-through wiring and include (3) M20 entries in a standard configuration.These units can be combined with other Global Series products to create factory-direct custom configurations, or optional coupling kits are available for limited field fixturing. The Global Series LED Beacon is ideal for use in alarm control panel applications. Flash Pattern Information 1 2 3 Pattern Standard Medium Fast 0 0 0 Steady-On - - - 0 0 1 Blink (60FPM) 60 flashes per minute 75 flashes per minute 90 flashes per minute 0 1 0 Swell (60SPM) 60 swells per minute 75 swells per minute 90 swells per minute 0 1 1 Strobe Simulation 60 25Hz strobes per minute 75 32Hz strobes per minute 90 39Hz strobes per minute 1 0 0 Rotate (CCW) 75 rotations per minute 94 rotations per minute 111 rotations per minute 1 0 1 Rotate (CW) 75 rotations per minute 94 rotations per minute 111 rotations per minute 1 1 0 Waggle 75 waggles per minute 94 waggles per minute 111 waggles per minute 1 1 1 Pinwheel 154 rotations per minute 188 rotations per minute 240 rotations per minute
