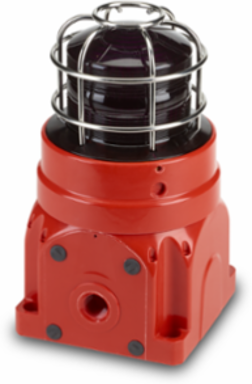

Federal Signal G-STR-120-D-M-15J-R Global Series Strobe Light, Hazardous Location, UL and cUL CID2, Zone Listed, 120VAC, Ex d Surface Mount, 15J, Magenta, Red enclosure
- MPN: G-STR-120-D-M-15J-R
- UPC: 782979105923
- PPN: FDS-G-STR-120-D-M-15J-R
- UNSPSC: 39111706
CAD
$1100.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Federal Signal's patented Global Series® 15-joule and 21-joule strobes feature high-intensity xenon strobe tubes. The housing is made from non-metallic materials designed to serve the demanding needs of offshore marine and land-based industrial applications and can dramatically reduce the cost of long-term maintenance.The flameproof "Ex d" versions come standard with (2) M20 entries. The increased safety "Ex de" versions include a separate terminal chamber for quick field termination or pass-through wiring and include (3) M20 entries in a standard configuration. The Global Series Strobe can be combined with all other Global Series audible and visual products in several custom configurations. Custom configurations can be ordered directly from the factory. Optional coupling kits, which allow limited field fixturing, are available.
Features
- Available in 24 Vdc, 120 Vac, and 220-240 Vac 50/60 Hz
- Optional stainless steel ratchet-adjustable mounting U-bracket (field installation required)
- Non-metallic, Glass Reinforced Polyester (GRP) corrosion-resistant design, available in Red or Black
- 24 Vdc models contain a supervisory diode and four-wire terminal block
- For use in alarm control panel applications
- Dome guard included
- M20 entries standard
- Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red and Yellow
- 316SS Guard and External Fasteners
- Field-customizable legend plates available
- IP69K compliant
- Marine Rated
- Zone 1, 21 Rated, IECEx, ATEX, Ex d IIC, Ex de IIC and Ex tb IIIC
- UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
- UL and cUL Listed for Class 1, Zone 1; Zone 21
- UL Fire Listed (24 Vdc, Clear 21 J Strobe)
- UKEX certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Candela Effective Power
- 300
- Flashes Per Minute
- 60
- Lens Color
- Magenta
- Operating Current Amps
- 0.33
- Operating Voltage
- 120 Vac
- Visual Signals Color
- Red
- Visual Signals Lens Color
- Magenta
- Visual Signals Operating Voltage
- 120VAC
- Environmental Rating
- Hazardous Location
- Lead Time
- Ships in 10 Business Days
Body ColorRed
Certification ListingABS, ATEX, CE, EAC, GOST, IECEx, INMETRO, UL, cUL
AvailabilityShips in 10 Business Days
Mount TypeSurface
Operating Temp.-67° to +158°F (-55° to +70°C)
Safety Standard OptionEx d
Visual Signals Flash Pattern15
Visual Signals Mount TypeSurface
Visual Signals Safety StandardEx d
Enclosure RatingType 4A, IP66, IP67, IP69K
Product Life Cycle StatusCompleted
