Greenlee PSTLP-KIT001 Gorilla Pistol Grip Press Tool Kit for Copper & Steel Fittings, 32kN Force, 350 Jaw Rotation
- MPN: PSTLP-KIT001
- UPC: 783310416579
- PPN: GRN-PSTLP-KIT001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Gorilla Pistol Grip Press Tool Kit for Copper & Steel Fittings, 32kN Force, 350 Jaw Rotation
Features
- Faster - Intelligence for accurate pressing
- Safer - No open flame. Safely install fittings without soldering or welding

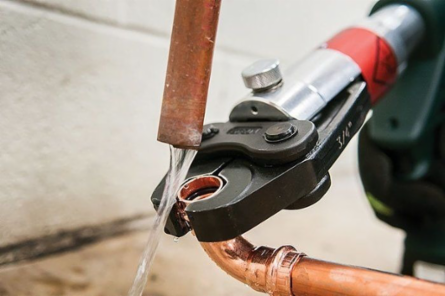

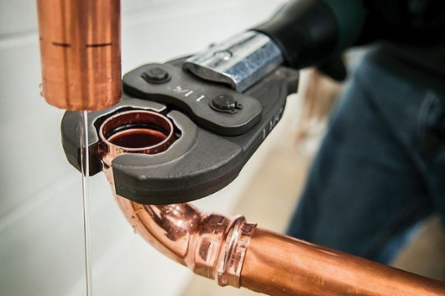

- Easier - Works on a wet system
- Autostop"" Technology enables piston to stop once pressing operation meets optimal force to ensure proper completion of press fitting
- Precise Pressing Force using HPC pressure monitoring with LED light and audible signals
- Battery and Maintenance status shown via LED display
- Push button trigger controls all tool functions with "Quickstop" of the tool's ram when released
- Automatic piston return saves time when performing multiple presses
- 350° Rotating Jaw allows for easy fitting into tight spaces
- LED work light illuminates for safety when working in dark areas
- Patented twist and release locking pin enables quick exchange of pressing jaws
- Innovative 2-component housing enables secure grip for easy one-handed operation
Documentation & Downloads
Specifications
Key Specifications
- Application
- Tool Kit for pressing fittings used with PEX, Copper, and Steel pipes
- Battery Charger
- Makita 120V Battery Charger (DC18RC-X)
- Crimp Cycle Time
- Pressing cycle time 3-4 secondS
- Crimping Force
- Pressing Force 7,200 lbs (32kN)
- Height
- 11-5/8'' (295.3 mm)
- Jaw
- 1/2'' (12.7 MM) Jaw for Copper and Steel || 3/4'' (19.1 MM) Jaw for Copper and Steel || 1'' (25.4 MM) Jaw for Copper and Steel || 1-1/4'' (31.8 MM) Jaw for Copper and Steel || 2'' (50.8 MM) Jaw for Copper and Steel
- Sub Brand
- Gorilla
- Weight With Jaws
- Pistol Grip Tool with Battery and 1/2'' (12.7 MM) JAW - 11.9 LBS (5.4 KG) || Pistol Grip Tool with Battery and 3/4'''' (19.1 MM) JAW - 11.9 LBS (5.4 KG) || Pistol Grip Tool with Battery and 1'' (25.4 MM) Jaw - 12.2 LBS (5.5 KG) || Pistol Grip Tool with Battery and 1-1/4'' (31.8 MM) Jaw - 12.1 LBS (5.5 KG) || Pistol Grip Tool with Battery and 1-1/2'' (38.1 MM) Jaw - 17.2 LBS (7.8 KG) || Pistol Grip Tool with Battery and 2'' (50.8 MM) Jaw - 16.9 LBS (7.7 KG)
BatteryMakita 18V 3.0AH
Battery Charge Time22 minutes
Crimping CapacityPress Copper and Steel Fittings up to 4'' (101.6 mm) || Press PEX Fittings up to 2'' (50.8 mm)
Estimated Cycles per Charge300

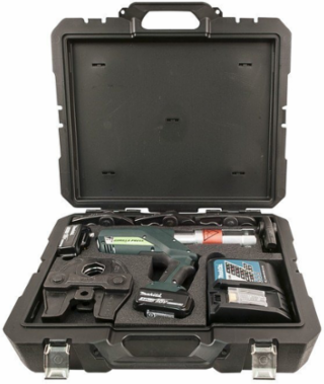

Includes1 Pistol Grip Press Tool (32kN) || 6 Pressing Jaws - 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', & 2'' (12.7 mm, 19.1 mm, 25.4 mm, 31.8 mm, 38.1 mm, & 50.8 mm) for Copper and Steel || 2 Makita 18V 3.0AH || Makita 120V Battery Charger (DC18RC-X) || 1 Carrying case
RotationHead Rotation 350°
WeightCase with Tool, 6 Jaws, 2 batteries, and 1 charger - 55.0 lbs (24.9 kg)
Width2-7/8'' (73.0 mm)
