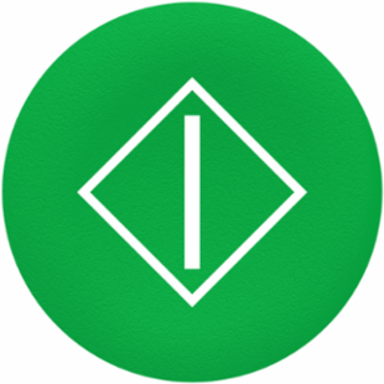

Schneider Electric ZBA346 Green Pushbutton Cap 22 mm with "I in a Diamond" Marking, Mercury Free, Flush Design

MPN: ZBA346
PPN: SCH-ZBA346
UNSPSC: 39122216

$3.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony ZB, flush green marked push button cap has a round shape with "I in a diamond" symbol. This push button cap provides an ergonomic interface for controlling your machine thanks to its flush element. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	17 g

Important Information Attributes

Carbon Footprint Of The Distribution Phase A4	0.0022230043, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0007812016, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Main Group	push-button
Operator Profile	flush
Quantity Per Set	set of 1
Sale Per Indivisible Quantity	10
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Database Version	2022-01
Accessory / Separate Part Category	marking accessory
Accessory / Separate Part Type	marked push-button cap
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0432130545
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.1 kg CO2 eq., 0.1344384433
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Marking	white I in a diamond
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Shape Of Signaling Unit Head	round
Sustainable Packaging	No
User Language	International
Data Source	extrapolated product
Accessory / Separate Part Destination	push-button head
Cap/Operator Or Lens Colour	green
Customs Code	8538906000
Functional Unit Description	This push button cap provides an ergonomic interface for controlling your machine. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.
Functional Unit Unit	Unit

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.1806557037
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2312047EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2312047EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
