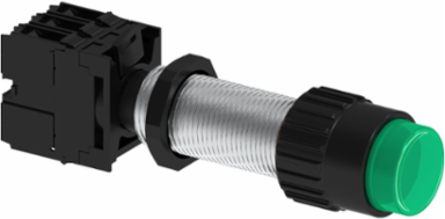

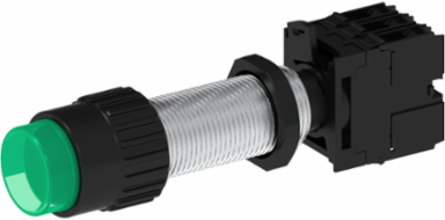

Killark GZL4G233 Green Illuminated Push Button, 6.7 Inch Length, 10A, Momentary Action, NEMA Type 4X
- MPN: GZL4G233
- UPC: 783936176215
- PPN: HBL-GZL4G233
CAD
$1627.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Green Illuminated Push Button w/ Lamp Holder, 120V AC/DC Lamp & 1 N.O./1 N.C. - Extra Long Length 57mm, 3/4 NPSM
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread and M22x1.5 on request.
- Control operators can be grouped into a single assembly thus reducing installation time and cost.
- Killark GZ SERIES Operators are a component for use in conjunction with a Hazardous Location enclosure to provide control solutions for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified. ATEX/IECEx certified components. See Product Details for certificate numbers.
Specifications
Key Specifications
- Country of Origin
- Brazil
- Dimensions
- 6.7 in x 1.8 in x 1.8 in
- Height
- 1.8 in
- Weight
- 0.55 lb.
- Engineering Drawing 1 Display Text
- GZ Series Dimensional Drawings
- Amperage Rating
- 10 A
- Nema Rating
- Type 4X
- Type
- Illuminated Push Button
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- D25D250
- Series
- GZ Series
- BOX SIZE
- (in)
- NAICS Code
- 3359326103
ColorGreen
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22;II 2 G Ex db IIC/IIB+H2Gb;II 2 D Ex tb IIIC Db
Length6.7 in
Width1.8 in
ActionMomentary
Frequency Rating50/60 Hz
Number Of Poles2
Wattage1.5 W
Class CodeD25
Harmonization Code8536509035
MSDS FlagNo
UL File NumberE12379
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936176215
