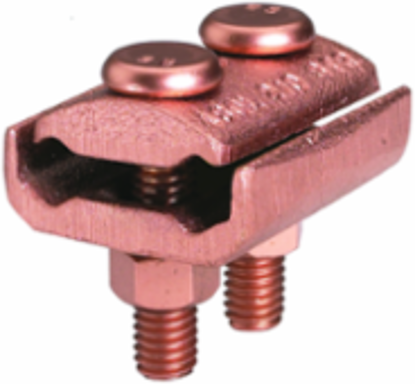

Burndy GL2626 Mechanical Grounding Connector, 2 Copper Cables to Bar, 4 AWG-2/0 AWG, 3/8 Inch Stud
- MPN: GL2626
- UPC: 781810260012
- PPN: BUR-264380
CAD
$104.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical Grounding Connector, 2 Copper Cables to Bar, 4 AWG (Sol.) - 2/0 AWG (Str.) (Run & Tap), 3/8" Stud.
Documentation & Downloads
Specifications

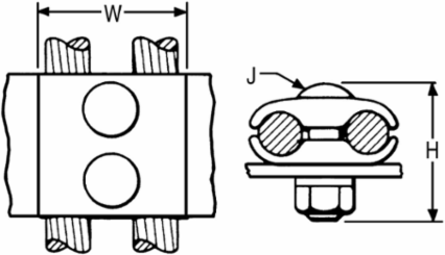

Dimensions
| Dimension - B Length inch | 1.69 in |
|---|---|
| Dimension - F Width Center to Center inch | 1.00 in |
| Dimension - Height inch | 2.00 in |
| Dimension - Pad Width inch | 0.94 in |
| Dimension - Width inch | 1.75 in |
| Dimension - D inch | 1.94 in |
|---|---|
| Dimension - Height fraction | 2 in |
| Dimension - Length Side B inch | 1.88 in |
| Dimension - Width fraction | 1-3/4 in |
| Dimension - Width mm | 44 mm |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Listed Direct Burial | Yes |
| Certification - cULus | No |
| Standards - Industry Standards Met | UL467 |
| UL Listed | Yes |
| Certification - ETL | No |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - RoHS Compliance Status | EX |
Conductor Related
| Conductor - Copper Solid Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG |
|---|---|
| Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Solid Size Range | 4 AWG-2/0 AWG |
|---|---|
| Conductor - Copper Str Size Range | 4 AWG-2/0 AWG |
General
| Application | For Joining A Wide Range Of Two Parallel Copper Cables To 1/4 IN Thick Bar, Direct Burial In Concrete Or Ground |
|---|---|
| Material | Copper Alloy |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Type | GL |
| UPC 12 Digit | 7818102600122 |
| Installation Torque Recommended in-lb | 240 LBS/in |
|---|---|
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Plated | N |
| Sub Brand | MECHANICAL CONNECTOR |
| UPC | 781810260012 |
Logistics
| Minimum Pack Quantity | 12 |
|---|
