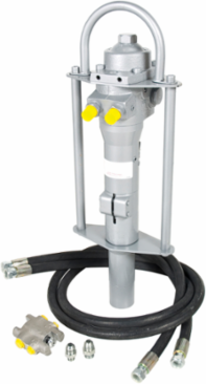

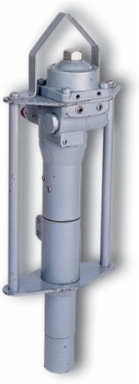

Greenlee HRD-58 Ground Rod Driver 5/8 Inch Opening, 45 LB Weight, 2000 PSI Maximum Pressure
- MPN: HRD-58
- UPC: 783310111924
- PPN: GRN-HRD-58
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ground Rod Driver 5/8 Inch Opening, 45 LB Weight, 2000 PSI Maximum Pressure
Features
- A deep rod opening and smooth operation ensures that the driver will not jump off of rods
- Light weight allows easy mounting on top of rods
- Can be used with Open and Closed-Center hydraulic systems
- Dual guide rods provide excellent control for driving rods straight, and the remote on/off valve makes it easy to control the depth of the rod
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Bulgaria
- Weight
- 45.000 LB (20.500 KG) Power Unit Only, 53.000 LB (24.000 KG) With Hoses And Control Valve
- Blow Energy
- 63.000 FT-LB (85 J)
- Hose Length
- 70.000 IN (178.000 CM)
- Hydraulic System
- Open And Closed-Center
- Maximum Input Pressure
- 2000 PSI (138 BAR)
- Replacement Part
- 02872 70 IN Hose Assembly, 111952 Remote Valve
- Type
- HRD Ground Rod
Length25-1/2 IN (654.000 MM)
Accessory54923 HTMA Male Coupler, 54924 HTMA Female Coupler
Blow Frequency1740/MIN At 8 GPM (30 LPM)
Hydraulic Flow Range5 - 8 GPM (19 - 30 LPM)
Jaw Opening5/8 IN (16.000 MM)
Pressure Port9/16 - 18 SAE O-Ring On/Off Valve
Return Port3/4 - 16 SAE O-Ring On/Off Valve
