Hubbell Premise Wiring

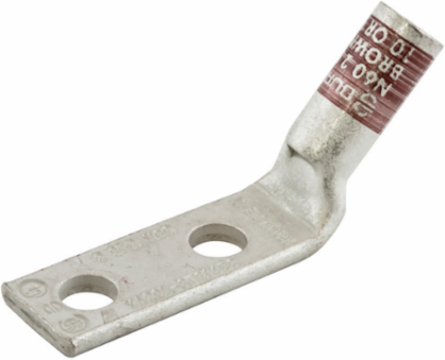

Hubbell Premise Wiring HGBL04D45 Grounding Lug #4 AWG Double Hole 1/4 Inch ID 5/8 Inch Spacing 45 Degree 25 Pack

Grounding Lug #4 AWG Double Hole 1/4 Inch ID 5/8 Inch Spacing 45 Degree 25 Pack
  • MPN: HGBL04D45
  • UPC: 662620310718
  • PPN: HBL-HGBL04D45
  • UNSPSC: 39121613

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$828.28/ EA

Description

Grounding and Bonding, Lug, #4 AWG,Double Hole, 1/4" ID Spaced 5/8", 45 Degree, 25 Pack

Features

  • #4 AWG
  • Double Hole
  • 1/4" ID Spaced 5/8
  • 45 Degree
  • 25 Pack

Specifications

Voltage Rating
600V to 35 kV
Hole Spacing
0.625 in
Mounting Hole Size
0.25 in
Material
Copper
Barrel Type
Long
Dimension A
2.5 in (64 mm)
Dimension C
0.3 in (8 mm)
Compliance
UL Listed, TIA-607 Compliant
Class Code
A64
Harmonization Code
8535908020
Wire Size#4 AWG
Mounting StyleDouble Hole
Lug Angle45°
Surface FinishTin Plated
Inspection WindowYes
Dimension B0.5 in (13 mm)
Dimension D0.63 in (16 mm)
Country of OriginUS
Sub Class CodeA64A675
Freight Class Code06168002
