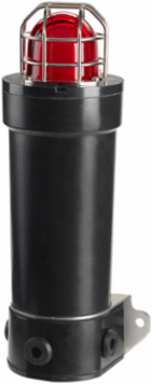

Federal Signal WV450XD21-110R GRP Strobe Light, 21-Joule Output, "D" Construction, Zone Rated, IECEx, ATEX, 110-120VAC, Red
- MPN: WV450XD21-110R
- UPC: 782979228912
- PPN: FDS-WV450XD21-110R
- UNSPSC: 39111706
CAD
$1668.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model WV450X flameproof single flash-strobe signal provides three high-intensity light outputs utilizing a 10,000-hour rated strobe tube. The housing is manufactured from GRP (glass-reinforced polyester) to reduce weight, improve corrosion-resistance, and eliminate regular inspection of the flame path.The devices include 316 stainless steel hardware, a mounting bracket, and a dome guard. The WV450X comes standard with metric cable entries in both the "d" explosion proof version and the "de" increase safety terminal chamber with (3) M20 entries. The increased safety design allows for quick field termination and pass-through wiring.The WV450X is ideal for the demands of offshore marine and land-based heavy industrial when ATEX & IECEx certifications are required.
Features
- Available in 10-, 15- and 21-joule units
- Seven lens colors: Amber, Blue, Clear, Green, Magenta, Red and Yellow
- 316 stainless steel mounting bracket included
- Available voltages (±15%): 24- 48 Vdc – 15J units
- 24- 48 Vdc – 15J units110 Vac – 10J/21J units
- 110 Vac – 10J/21J units220 Vac – 10J/21J units
- 220 Vac – 10J/21J units
- Corrosion resistant GRP (Glass Reinforced Polyester)
- Included dome guard
- M20 entries standard
- IP66 enclosure
- Zone rated, IECEx, ATEX, Ex d IIB +H2 T3-T4, Ex de IIB +H2 T3-T4
- ATEX, IECEx, CE, GOST Certified
- CE and UKCA compliant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 11.41 in
- Weight
- 7.1 lbs
- Certification Listing
- ATEX, CE, GOST, IECEx, INMETRO
- Availability
- Available in 4-6 Weeks
- Mount Type
- Surface
- Operating Temp.
- -67° to +131°F (-55° to +55°C)
- Visual Signals Flash Pattern
- 21
- Visual Signals Operating Voltage
- 110VAC
- Environmental Rating
- Explosion-Proof
- Lead Time
- Available in 4-6 Weeks
Width4.46 in
Depth4.46 in
Candela Power Peak298000
Flashes Per Minute60
Lens ColorRed
Operating Current Amps270/750
Operating Voltage110 Vac
Visual Signals Lens ColorRed
Visual Signals Safety StandardD-Flameproof
Enclosure RatingIP66
Product Life Cycle StatusCompleted
