Schneider Electric NTSDMY0200HK Dummy Module + Base, Double Slot, Hardened, Modicon Edge I/O NTS
- MPN: NTSDMY0200HK
- PPN: SCH-NTSDMY0200HK
CAD
$146.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

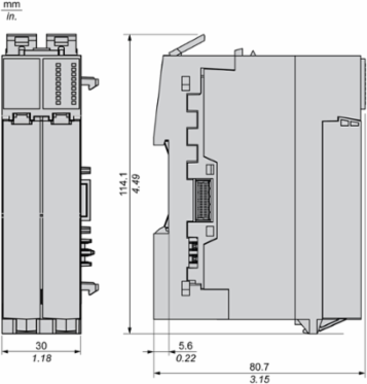

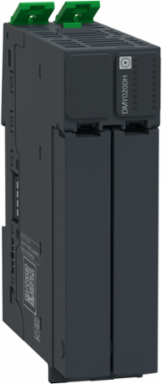

This dummy kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a dummy module. It involves configuring a placeholder module to mimic the behavior of a real module, without performing any real input or output functions. It is used for testing, development, or as a temporary placeholder without a real module. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm High, 30mm wide, 88mm deep and weighs 0.142kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, United States
Depth80 mm
Physical Attributes
- Housing Color
- grey
Important Information Attributes
- Kit Composition
- NTSDMY0200H module, NTSXBA0200H base
- Mounting Support
- top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1133483609178536, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.00021219107406817618
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 40 kg CO2 eq., 40.05725036365431
- Local Publishable Date
- 2026-01-12
- Pre Comm Date
- 2024-12-19
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2409008EN
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Application
- industrial application in severe environment
- Front Installation Possible
- false
- Optical Interface Present
- false
- Product Or Component Type
- dummy module kit
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- Yes
- Software Version
- v6.1
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Total Lifecycle Carbon Footprint
- 549 kg CO2 eq.
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Digital Outputs Configurable
- false
- Housing Color
- grey
- Short Circuit Protection Outputs Present
- false
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To supply power to I/O modules in Modicon Edge I/O NTS System during 10 years with a 100% use rate and a power dissipation of 1,562W.To supply power to I/O modules in Modicon Edge I/O NTS System during 10 years with a 100% use rate and a power dissipation of 1,562W.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 100 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 145.000 g
- Warranty (In Months)
- 18
MarkingCE, UKCA, cULus, RCM
Certificate AgencyCE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.21953974790526434, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]509 kg CO2 eq., 509.06795959887563
Local Data StatusPublishable
Pre Comm Announcement Date2024-12-19
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2439
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bearing Track Assembly Possiblefalse
Electrical Connectionscrew/spring terminal block
Network TypeDC
Product AvailabilityStock - Normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon Edge I/O NTS
Shock Resistance15 g 11 ms with and without accessory)
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Vibration Resistance1 g without accessory2 g with accessory
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage20.4-28.8 V
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
System Accessoryfalse
Pep CodeENVPEP2409008EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal30 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Silcl Acc. To En 62061false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code3926909989
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU - directive basse tension
- China Rohs Regulation
- X
- Carbon Footprint
- 549.4583102624272
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2409008EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- NTSN.....
- Pep Code
- ENVPEP2409008EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C-40-70 °C
Circularity ProfileENVEOLI2409008EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m) without derating
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % without condensation
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- dummy module kit
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Output Attributes
- Discrete Output Voltage Type
- DC
Output Voltage Limits24 V
