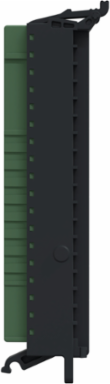

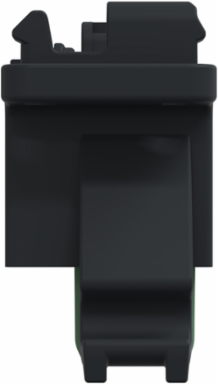

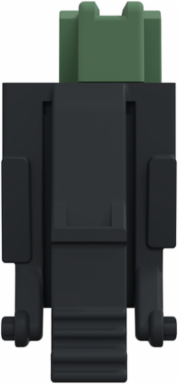

Schneider Electric NTSXTB18000XH Screw Terminal Block, 18 Points, 5mm Pitch, Without Cover, Use on High Height Module (X), Hardened, Modicon Edge I/O NTS
- MPN: NTSXTB18000XH
- PPN: SCH-NTSXTB18000XH
- UNSPSC: 39121410
CAD
$48.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This screw terminal block is part of the Modicon Edge I/O NTS range. It is a screw terminal block without a plastic cover to use on the 121mm high modules. It has 18 connection points and a 5mm Pitch and handles DC voltage. This removable terminal block allows quick and easy disconnection of wiring, minimizes system downtime during maintenance or troubleshooting. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20 and benefits from a Protective coating. It is compatible with discrete I/O, analog input, Counting, Field device master, Passive, and Motion expert modules. It is sold individually per pack. It connects to the front face of the module. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Features
- Conformal coating, extended temperature range, operates in severe environment
- Save time and less time to market
- Reduce cost and unplanned downtime
- Increase flexibility
- Data-driven and cybersecure
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Weight | 64 g |
|---|
Physical Attributes
| Color | Gray |
|---|
Important Information Attributes
| Certificate Agency | CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.14951382145799175 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.2 kg CO2 eq., 0.20681028423462863 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2024-12-19 |
| Return Indicator | Y |
| Serviceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Marking | cURus |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | none |
| Range Of Product | Modicon Edge I/O NTS |
| Shock Resistance | 15 g 11 ms with and without accessory) |
| Sustainable Packaging | Yes |
| Vibration Resistance | 1 g without accessory2 g with accessory |
| Data Source | extrapolated product |
| Width Nominal | 14 mm |
| Accessory / Separate Part Destination | I/O module |
| Accessory / Separate Part Designation | terminal block for high height I/O module |
| Customs Code | 8536904000 |
| Packaging Weight In G | 10 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Carbon Footprint Of The Distribution Phase A4 | 0.031512066108845216, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.00032668218364972695, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0 kg CO2 eq., 0.0029290472512886936 |
| Local Publishable Date | 2026-01-12 |
| Pre Comm Date | 2024-12-19 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2439 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Connector Type | screw connector |
| Pin Number | 18 |
| Product Or Component Type | terminal block |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Software Version | v6.2.2 |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 110 mm |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | terminal block |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate. To provide a secure connection for wiring and facilitate the transmission of electrical signals between the Modicon Edge I/O and connected devices during 20 years with a 100% use rate. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 62 |
Environment Attributes Main
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -40-70 °C-40-70 °C |
| Environmental Disclosure | ENVPEP2409007EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | NTS high height I/O module |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2409007EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.391091901236404 |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2024-12-03 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | terminal block |
|---|
| Range Of Product | Modicon Edge I/O NTS |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|---|
| ETIM 10 | EC002584 |
| ETIM 9 | EC002584 |
|---|
