Weidmuller 9026100000 H2,5/15 BL SV
Weidmuller 9026100000 H2,5/15 BL SV
- MPN: 9026100000
- PPN: WDM-9026100000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.08/ EA
Description

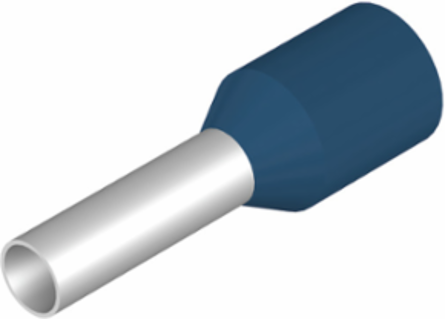

Wire-end ferrule, insulated, 10 mm, 8 mm, blue
Specifications
Approvals
- Approvals
- CCSAUS, CULUS, VDE
- UL File Number Search
- E499744
ROHSConform
Dimensions And Weights
- Width
- 15 mm
- Net weight
- 0.152 g
Width (inches)0.591 inch
Classifications
- ETIM 6.0
- EC000005
- eClass 9.0
- 27-40-02-01
- eClass 10.0
- 27-40-02-01
ETIM 7.0EC000005
eClass 9.127-40-02-01
UNSPSC31-16-31-02
Technical Data
- Version
- insulated
Wire-End Ferrules
- Collar diameter (D2)
- 4.2 mm
- Conductor cross-section
- 2.5 mm²
- Contact surface length (L2)
- 8 mm
- Metal sleeve thickness (S1)
- 0.15 mm
- Plastic collar thickness (S2)
- 0.25 mm
- Wire connection cross section AWG, max.
- AWG 14
Colour codeWeidmüller
Contact surface diameter (D1)2.2 mm
L1 in mm15 mm
Military designationT 20A 017 A
Stripping length10 mm
