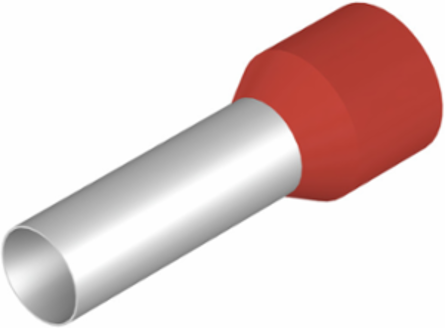

Weidmuller 9019330000 H35,0/39D R
- MPN: 9019330000
- PPN: WDM-9019330000
CAD
$0.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire-end ferrule, insulated, 28 mm, 25 mm, red
Documentation & Downloads
Specifications
Approvals
- Approvals
- BW, CCSAUS, CULUS, VDE
- UL File Number Search
- E499744
ROHSConform
Dimensions And Weights
- Width
- 39 mm
- Net weight
- 1.74 g
Width (inches)1.535 inch
Classifications
- ETIM 6.0
- EC000005
- eClass 9.0
- 27-40-02-01
- eClass 10.0
- 27-40-02-01
ETIM 7.0EC000005
eClass 9.127-40-02-01
UNSPSC31-16-31-02
Technical Data
- Version
- insulated
Wire-End Ferrules
- Collar diameter (D2)
- 12.7 mm
- Conductor cross-section
- 35 mm²
- Contact surface length (L2)
- 25 mm
- Metal sleeve thickness (S1)
- 0.2 mm
- Plastic collar thickness (S2)
- 0.4 mm
- Wire connection cross section AWG, max.
- AWG 2
Colour codeDIN
Contact surface diameter (D1)8.3 mm
L1 in mm39 mm
Military designationT 20A 033 A
Stripping length28 mm
