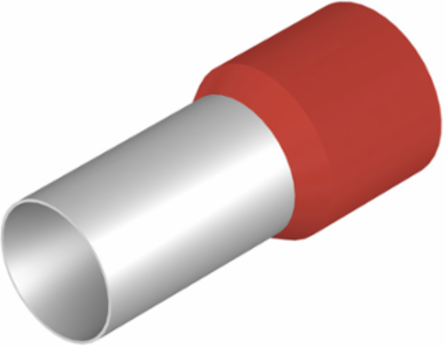

Weidmuller 9028210000 H95,0/44 R
- MPN: 9028210000
- PPN: WDM-9028210000
CAD
$1.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire-end ferrule, insulated, 31 mm, 25 mm, red
Documentation & Downloads
Specifications
Approvals
| Approvals | CCSAUS |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 44 mm |
|---|---|
| Net weight | 5.2 g |
| Width (inches) | 1.732 inch |
|---|
Classifications
| ETIM 6.0 | EC000005 |
|---|---|
| eClass 9.0 | 27-40-02-01 |
| eClass 10.0 | 27-40-02-01 |
| ETIM 7.0 | EC000005 |
|---|---|
| eClass 9.1 | 27-40-02-01 |
| UNSPSC | 31-16-31-02 |
Technical Data
| Version | insulated |
|---|
Wire-End Ferrules
| Collar diameter (D2) | 18 mm |
|---|---|
| Conductor cross-section | 95 mm² |
| Contact surface length (L2) | 25 mm |
| Metal sleeve thickness (S1) | 0.35 mm |
| Stripping length | 31 mm |
| Colour code | Weidmüller |
|---|---|
| Contact surface diameter (D1) | 14.7 mm |
| L1 in mm | 44 mm |
| Plastic collar thickness (S2) | 0.6 mm |
| Wire connection cross section AWG, max. | AWG 3/0 |
