Wiegmann WA72P48F2 Half-Panel Double Door Freestanding 30.8X44 Carbon Steel - White
Wiegmann WA72P48F2 Half-Panel Double Door Freestanding 30.8X44 Carbon Steel - White
- MPN: WA72P48F2
- UPC: 786725416554
- PPN: HBL-WA72P48F2
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1750.31/ EA
Description

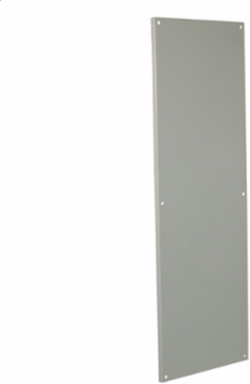

Half-Panel Double Door Freestanding 30.8X44 Carbon Steel - White
Features
- Fabricated from carbon steel
- Position panels anywhere along horizontal depth-wise mounting channels
- Panels for two-door single-access and two-door dual-access freestanding NEMA 12 enclosures. Panels are 10 gauge steel and can be positioned anywhere along horizontal depth-wise mounting channels. Half-length panels can be located in the upper or lower portion of the enclosure. Mounting hardware furnished with each panel. Panels are painted with a white smooth hybrid finish.
Specifications
Specifications
- Country of Origin
- Mexico
- Application
- For use with two door freestanding enclosures.
- Finish
- Smooth Hybrid Paint
- Mounting
- Mounting Hardware
- Special Features
- Panels for two-door single-access and two-door dual-access freestanding NEMA 12 enclosures. Panels are 10 gauge steel and can be positioned anywhere along horizontal depth-wise mounting channels. Half-length panels can be located in the upper or lower portion of the enclosure. Mounting hardware furnished with each panel. Panels are painted with a white smooth hybrid finish.
- Width
- 44 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Mounting Type
- Mounting Hardware
- Class Code
- P05
- Freight Class Code
- 00174410
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P05P077
- Material
- Carbon Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 74.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Actual Height30.88 in
ColorWhite
Height31 in
ShapeRectangle
TypeBack Panel
Weight74 lb.
Finish TypeSmooth Hybrid Paint
ARRA CompliantContact Manufacturer
Description - InvoicePANEL,N4-12,30.875X44
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
ConstructionFlanged
SeriesWA-F2 Seires
BOX SIZE30.880x1.250x44.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725416554
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
