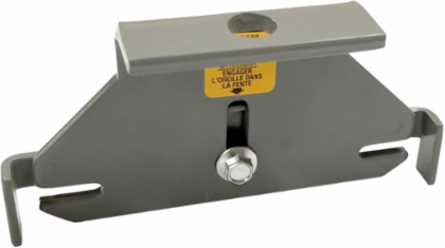

![Hanger, I-Line Busway, 1200A for Al, 1600A for Cu, 600VAC, horizontal flatwise [TAA]](https://images.province-electric.com/SCH-HF67F/hanger-i-line-busway-max-medium.webp)
Documentation & Downloads
Square D HF67F Hanger, I-Line Busway, 1200A for Al, 1600A for Cu, 600VAC, horizontal flatwise [TAA]
- MPN: HF67F
- UPC: 785901812968
- PPN: SCH-HF67F
CAD
$154.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This hanger is rated 1200A for Al, 1600A for Cu, that is ideal for commercial or industrial applications. Indoor horizontal busway requires one hanger for every 10 feet of busway. Vertical indoor busway requires one hanger for every 16 feet. Outdoor feeder busway requires one hanger for every 5 feet in horizontal mounting and one hanger for every 10 feet in vertical mounting. This hanger can be used with aluminum and copper busways. This unit is for horizontal flatwise mounting. This hanger meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Compliance|TAA Compliant | BAA Compliant via COTS
Complementary Attributes
- Line Rated Current
- 1600-1600 A copper
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL 857CSA C22.2 No 27:1994, IEC 61439-6
- Local Publishable Date
- 2026-01-06
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Height Nominal
- 8.7 in
- Package Weight(Lbs)
- 771.107 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1913
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Installation Directionhorizontal
Product Or Component Typehanger
ReturnabilityYes
Pep CodeENVPEP1407014EN
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8302500000
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407014EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1407014EN
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- hanger
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
