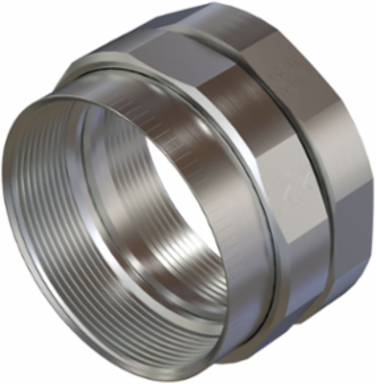

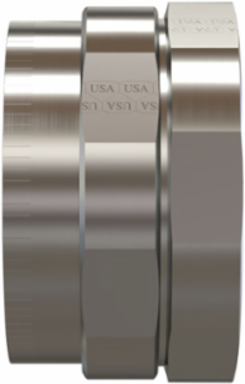

Killark UNF75 Hazardous Location Union, 3/4 Inch Female/Female, Zinc Plated Steel, 1.5 Inch Diameter

MPN: UNF75
UPC: 783936184050
PPN: HBL-UNF75

$28.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Hazardous Location Union - Zinc Plated Steel - 3/4" Female/Female

Features

Unique design offers a compact size for lighter weight and smaller profile for critical clearances with equipment
Extruded bar stock construction provides superior threads over sand cast and provides twice the tensile strength
Uniform design across all sizes for aesthetic and robust appeal
Male to Female union has nonremovable nipple to ensure tight seal with union and pipe/equipment
Made in the USA
Unions are used to connect two pieces of conduit or attach conduit to junction boxes, fittings, or devices. Permits removal of equipment without turning or removal of conduit

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Hazardous Rating(s)	Class I, Divisions 1 & 2, Groups A, B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size	3/4"
Weight	0.29 lb.
Finish Type	Zinc Plated
Type	Female/Female Union
Class Code	D30
Harmonization Code	7307199030
MSDS Flag	No
Material	12L14 Steel
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00783936184050

Color	Silver
Hex Size	1.44 in
Length	1.56 in
Diameter	1.5 in
Nema Rating	4
ARRA Compliant	Contact Manufacturer
Freight Class Code	06316009
Image Actual Or Representative	A
Sub Class Code	D30D237
Series	UNF Series
BOX SIZE	(in)
NAICS Code	3359323108
