Hubbell Wiring Device-Kellems HBL57443IV HBL500 Series Metal Raceway, 3 Gang Extra Deep, Ivory, Cold Rolled Steel
- MPN: HBL57443IV
- UPC: 783585217024
- PPN: HBL-HBL57443IV
CAD
$80.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

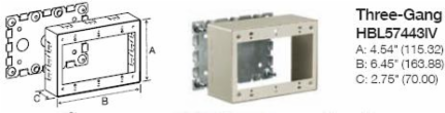

Metal Raceway Box, 3-Gang, Extra Deep, HBL500/700/750 Series
Features
- The Hubbell Canada HBL57443IV is engineered for absolute physical integration with HBL500, HBL700, and HBL750 series single-channel metallic raceways. This eliminates cross-brand fitting errors, allowing commercial electricians and facility managers to seamlessly extend branch circuits or data lines without replacing the main structural runs.
- The box is precision-stamped with a single-seam construction and rounded corners, offering a clean, uniform look that avoids sharp, dangerous edges during pulling. Its advanced architectural design ensures that standard three-gang wallplates mount completely flush, leaving virtually zero perimeter profile exposed for a high-end, professional finish in offices or learning institutions.
- Fabricated from heavy-duty folded and rolled steel with a durable, scratch-resistant ivory finish, this non-hazardous location box offers superior resistance to impact and physical wear. It is fully UL Listed and CSA Certified, guaranteeing code compliance, robust grounding paths, and dependable structural integrity across institutional and light industrial environments.
Documentation & Downloads
Specifications
Additional
- Raceway Series
- hbl500-tn
- Material
- Cold Rolled Steel
- Dimensions
- 6.45 in W x 4.54 in H x 2.75 in L
- UL Listings
- E253976 / E253830 / E253833 / UL5
- TIA/EIA
- 569B
- Raceway Type
- tn/metalraceway
- HBL500 Series Trak Item
- Boxes & Covers
Box Type3 Gang Standard Box
ColorIvory
Weight1.3 lbs
CSA ListingLR87514 / C22.2 no. 62
NEC Article386
ApplicationFor use with HBL500, HBL700, HBL750 Series Raceway; Single Service
