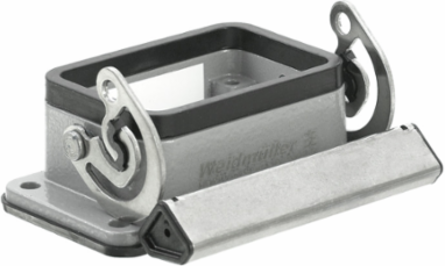

Weidmuller 1019870000 HDC 06B ALU O-RING
- MPN: 1019870000
- PPN: WDM-1019870000
CAD
$26.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 3, Protection degree: IP65, Open base, End-locking clamp, lower side, Standard
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque1.2 Nm
Approvals
- Approvals
- CE
ROHSConform
Dimensions And Weights
- Width
- 66 mm
- Height
- 27.8 mm
- Mounting dimension - width
- 70 mm
- Net weight
- 102 g
Width (inches)2.598 inch
Height (inches)1.094 inch
Mounting dimension - height32 mm
General Descriptions
- Size
- 3
Protection degreeIP65

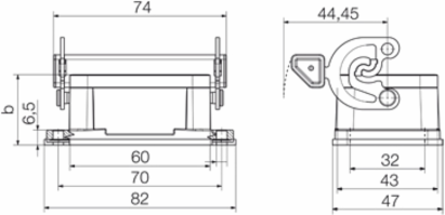

Dimensions
- Height of base B1
- 5.3 mm
- Hole pitch length A2
- 70 mm
- Width base C1
- 47 mm
Height of housing B27.8 mm
Total length housing60 mm
Width housing C43 mm
Version
- Clamp version
- End-locking clamp
- Design of housing
- Open base
- Sealing
- NBR
- Suitable for ModuPlug
- Yes
- Top part/bottom part/lid
- lower part
DesignStandard
Design of locking systemEnd-locking clamp, lower side
Size3
Tightening torque1.2 Nm
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC enclosures
Product typeEnclosures
Temperatures
- Limit temperature
- -40 °C ... 125 °C
