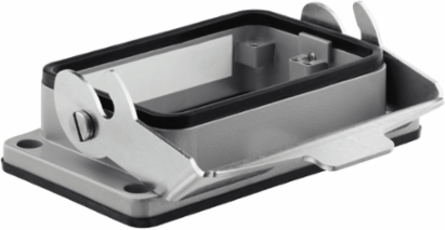

Weidmuller 1295600000 HDC 48B ALU
- MPN: 1295600000
- PPN: WDM-1295600000
CAD
$78.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 12, Protection degree: IP65, Open base, End-locking clamp, lower side, Standard, without cover
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Protection degree
- IP65
- Tightening torque
- 1.2 Nm
Housing main materialdiecast aluminium
Protection class noteProtection class with secured cover: IP 65
Surface finishPowder coating
Approvals
- Approvals
- CE
ROHSConform
Dimensions And Weights
- Width
- 96.7 mm
- Height
- 41.5 mm
- Depth
- 167.7 mm
- Net weight
- 506.6 g
Width (inches)3.807 inch
Height (inches)1.634 inch
Depth (inches)6.602 inch
General Descriptions
- Size
- 12
Protection degreeIP65
Dimensions
- Height of base B1
- 7 mm
- Hole pitch length A2
- 148 mm
- Width base C1
- 96.7 mm
Height of housing B41.5 mm
Total length housing132 mm
Width housing C90 mm
Version
- Clamp version
- End-locking clamp
- Design
- Standard
- Design of housing
- Open base
- Sealing
- NBR
- Suitable for ModuPlug
- Yes
- Top part/bottom part/lid
- lower part
Coverwithout cover
Design of coverwithout cover
Design of locking systemEnd-locking clamp, lower side
Size12
Tightening torque1.2 Nm
TypeBulkhead (feed-through)
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC enclosures
- Type
- Bulkhead (feed-through)
Product typeEnclosures
Temperatures
- Limit temperature
- -40 °C ... 125 °C
