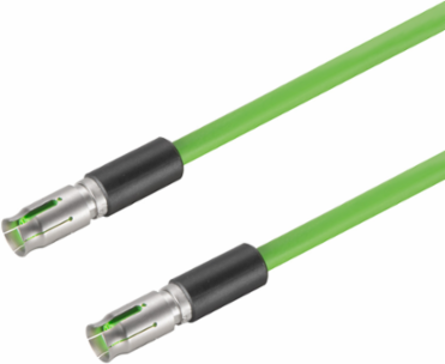

Weidmuller 2652760050 HDC XX5E01 FFSXXXX-0050
- MPN: 2652760050
- PPN: WDM-2652760050
CAD
$163.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC XX5E01 FFSXXXX-0050
Specifications
General Data
| Module side version | Female |
|---|---|
| Cable length | 0.5 m |
| Coding | D |
| Insulation strength | ≥ 108 Ω |
| Plugging cycles | ≥ 100 |
| Rated current | 4 A |
| Transmission rate | 100 MBit/s |
| Opposite side version | Female |
|---|---|
| Category | Cat. 5e |
| Contact surface | Au (Gold) |
| Number of poles | 4 |
| Pollution severity | 2 |
| Rated voltage | 250 V |
| Type | Female |
Dimensions And Weights
| Net weight | 0 g |
|---|
| Diameter | 6.5 mm |
|---|
General Descriptions
| Number of poles | 4 |
|---|
| Plugging cycles | ≥ 100 |
|---|
Material
| Contact surface | Au (Gold) |
|---|
Cable Technical Specifications
| Cable length | 0.5 m |
|---|---|
| Core cross-section | 22 AWG |
| Insulation | PE |
| Sheathing colour | green |
| Colour coding | white, yellow, blue, orange |
|---|---|
| Halogen | No |
| Sheath material | PUR |
| Shielded | Yes |
Classifications
| ETIM 6.0 | EC002599 |
|---|---|
| eClass 9.0 | 27-06-03-07 |
| eClass 10.0 | 27-06-03-07 |
| ETIM 7.0 | EC002599 |
|---|---|
| eClass 9.1 | 27-06-03-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Design
| Type | Female |
|---|
