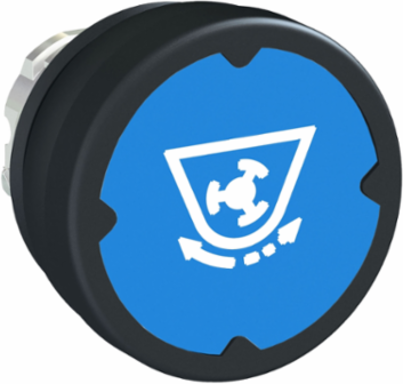

Schneider Electric ZB4BC68032 Head for push button, Harmony XB4, pushbutton harsh environment, dark blue, with marking
- MPN: ZB4BC68032
- PPN: SCH-ZB4BC68032
- UNSPSC: 39122216
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Head for push button, Harmony XB4, pushbutton harsh environment, dark blue, with marking
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 36 g |
|---|

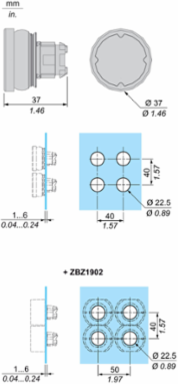

Physical Attributes
| Cad Overall Depth | 37 mm |
|---|---|
| Cad Overall Width | 37 mm |
| Cad Overall Height | 18.5 mm |
|---|
Important Information Attributes
| Customizable | 0, no |
|---|---|
| Operator Add Information | vertical mounting |
| Carbon Footprint Of The Distribution Phase A4 | 0.004707758, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0072204982, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Compatibility Code | ZB4 |
| Electrical Composition Code | C1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting |
| Group Of Product | flush marked type H032 |
| Main Group | harsh environment |
| Mechanical Durability | 10000000 cycles |
| Operator Additional Information | vertical mounting |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony XB4 |
| Returnability | No |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| X C Marking | type H032 |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Cap Operator Or Lens Color | blue |
|---|---|
| Certificate Agency | CSA, CE, UL |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.0455359431 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.2551686833 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Bezel Material | chromium plated metal |
| Device Short Name | ZB4 |
| Electrical Shock Protection Class | class I conforming to IEC 61140 |
| Head Type | standard |
| Marking | type H032 |
| Mounting Diameter | 22.5 mm |
| Operator Profile | blue flush, type H032 white) |
| Product Or Component Type | head for push-button |
| Resistance To High Pressure Washer | 90 Pa 82.5 °C |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | No |
| Type Of Operator | spring return |
| Color Of Marking | white |
| Database Version | 2022-01 |
| Cap/Operator Or Lens Colour | blue |
| Customs Code | 8536509033 |
| Functional Unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional Unit Unit | Unit |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP69K, IP67, IP69 |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.3126328826 |
| Environmental Disclosure | ENVPEP2308035EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Nema Degree Of Protection | NEMA 4 UL 508, NEMA 13, NEMA 12 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | head for push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000221 |
|---|---|
| ETIM 10 | EC000221 |
| ETIM 9 | EC000221 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
