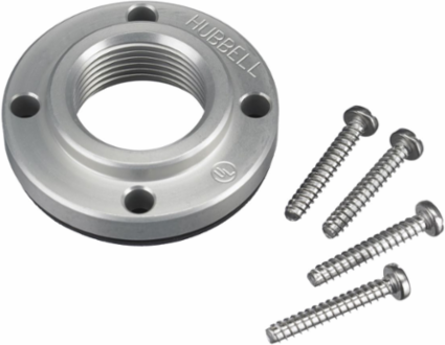

Hubbell Wiring Device-Kellems SAD125 IEC Pin and Sleeve Adapter 100-125A 1-1/4 Inch NPT Aluminum
- MPN: SAD125
- UPC: 783585140308
- PPN: HBL-SAD125
- UNSPSC: 39121402
CAD
$187.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade, Adapter, 100 and 125A-l Wire, 1¼" NPT, Furnished with Hardware, Machined Aluminum
Features
- Industrial Grade
- Liquid Tight Adapter
- 100 and 125A- All Wire
- 1 1/4" NPT
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Industry Standard(s)
- UL Listed
- Application
- 100 and 125 Amp, All Wire
- Environmental Conditions
- Watertight
- Special Features
- 1 1/4" NPT
- Type
- Liquidtight Adapter
- General Literature Asset 2 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A180
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.85 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Case Weight
- 19.250 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.000 in
- Pallet Weight
- 1232.000 lb.
- NAICS Code
- 3359323112
Width3.250 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Cord TypeAll Portable
NEMA RatingNon-NEMA
StandardUL Listed
General Literature Asset 1 Display TextDual-Certified IEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPulp & Paper Solutions
Display SizeStandard Sized
Style1¼" NPT
Description - InvoicePS,IEC/INS,L/T ADAPT,1 1/4" HUB, 100/125
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareCord Mounted
SeriesAccessories
BOX SIZE4.400x5.000x4.800 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585140308
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585140307
Pallet Length48.000 in
Pallet Width40.000 in
