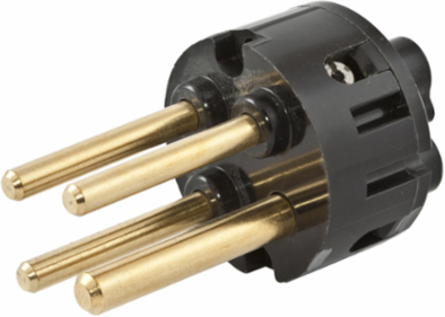

Hubbell Wiring Device-Kellems IN3100AM Heavy Duty Male Replacement Interior IEC Pin and Sleeve Device, 100A, 3-Wire, Black Thermoset Polyester
- MPN: IN3100AM
- UPC: 783585420561
- PPN: HBL-IN3100AM
- UNSPSC: 39121406
CAD
$628.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Replacement Interior, For 100A 3-Wire, Furnished with Screws, Black Thermoset Polyester
Features
- Thermoset Polyester Contact Carrier
- Withstands high temperatures caused due to overload or arcing
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 3.250 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous:75°C;Min. Continuous:-40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Color
- Black
- Environmental Conditions
- Watertight When Installed
- Number of Poles
- 2-Pole
- Special Features
- Watertight
- Type
- Replacement Interior
- Wire Size
- #3 AWG to #1/0 AWG
- General Literature Asset 1 Display Text
- IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- For Plugs/Inlets
- Description - Invoice
- PS, IEC, REP INT, 3W, 100A 125V, MALE
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Accessories
- BOX SIZE
- 4.000x10.000x6.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585420561
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
Current / Amperage Rating100 A
Industry Standard(s)UL Listed
Amperage Rating100 A
Dielectric StrengthWithstands 3000V Minimum in
NEMA RatingNon-NEMA
Number of Wires3-Wire
StandardUL Listed
Voltage Rating125 VAC
Voltage Rating Description125 VAC
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires3-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
