Bryant

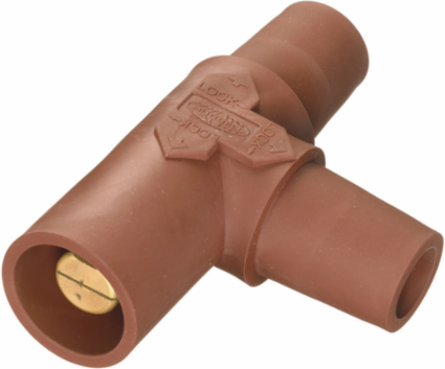

Bryant HBLTBN Industrial Grade Tapping Tee, 400A, 600V AC/DC, Brass/Elastomer, 3.2 Inch Width

Industrial Grade Tapping Tee, 400A, 600V AC/DC, Brass/Elastomer, 3.2 Inch Width
  • MPN: HBLTBN
  • UPC: 783585113180
  • PPN: HBL-HBLTBN
  • UNSPSC: 39121710

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$201.80/ EA

Description

Heavy Duty Single Pole Industrial Grade, Female-Female-Male, Tapping "Tee", 300/400,600V AC/DC, Single Conductor, Pre-Wired

Features

  • Industrial Grade
  • Female-Female-Male
  • Tapping "Tee
  • Standard Product

Specifications

Specifications

Country of Origin
China
Width
3.200 in
Performance
Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
Application
High Ampacity
Insulation
Insulated Body
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Standard
UL 498 And UL1691
Wattage
360000
Number Of Pins
1) In, 2) Out- Male-Female-Female
Description - Invoice
SINGLEPOLE, TAPPING T, FEM-FEM-MALE, BR
Harmonization Code
8536698000
MSDS Flag
No
Material
Brass and Elastomer
Base Unit of Measure
EA
Carton - Gross Weight per Pack
8.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Current / Amperage Rating400 A
Industry Standard(s)UL 498 And UL1691
Amperage Rating400 A
ColorBrown
Number of Pins1) In, 2) Out- Male-Female-Female
Special FeaturesStandard Product
TypeTees and 3-Fers
Voltage Rating Description600V AC/DC
StyleTapping Tee Female-Female-Male
Freight Class Code06168002
Image Actual Or RepresentativeA
Current Rating400 A
Series16 Series
BOX SIZE3.700x15.300x8.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585113180
Case Weight10.750 lb.

Certifications

EU RoHS Indicator
Contact Manufacturer
