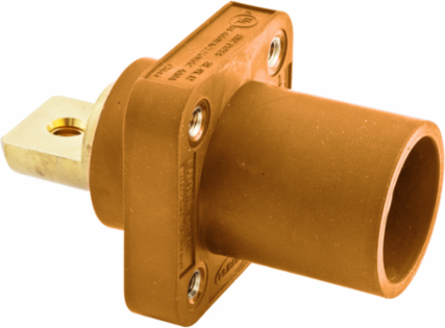

Bryant HBLMRBO Heavy Duty Male Bus Receptacle, 1-Pole, 300/400A 600V AC/DC, Orange
Bryant HBLMRBO Heavy Duty Male Bus Receptacle, 1-Pole, 300/400A 600V AC/DC, Orange
- MPN: HBLMRBO
- UPC: 783585192611
- PPN: HBL-HBLMRBO
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$61.68/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male Bus Receptacle, 300/400A 600V AC/DC, Single Conductor, Orange
Features
- Industrial Grade
- Male Bus Receptacle
- 300/400A 600V AC/DC
- Standard Product
Specifications
Specifications
- Country of Origin
- CN
- Width
- 2.250 in
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Amperage Rating
- 400 A
- Color
- Orange
- NEMA Rating
- Non-NEMA
- Phase
- Single Phase
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Wattage
- 240000
- Voltage Rating Description
- 600V AC/DC
- Display Size
- Standard Sized Product
- Number Of Poles
- 1-Pole
- Description - Invoice
- SINGLEPOLE, 300/400A MALE BUS RECEP, OR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 400 A
- Series
- 16 Series
- BOX SIZE
- 5.000x22.600x11.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585192611
- Case Weight
- 16.400 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.000 in
- Pallet Weight
- 1033.200 lb.
Current / Amperage Rating400 A
Each - Width2.250 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
ApplicationHigh Ampacity Connections
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles1-Pole
Special FeaturesStandard Product
TypeReceptacle
Wire Size#4 AWG to #4/0 AWG
ConnectivityScrew Terminals
Nema RatingNon-NEMA
StyleBus Bar Mount Male
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585192610
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
