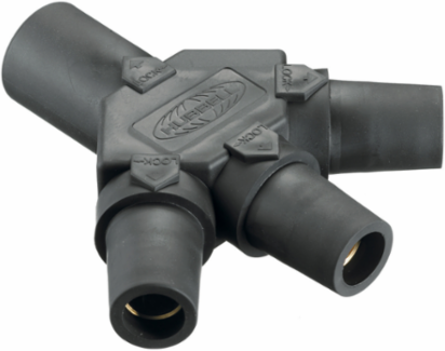

Bryant HBLM3FBK Heavy Duty Tri-Tap Male-Female-Female-Female Connector, 400A, 600V AC/DC

MPN: HBLM3FBK
UPC: 783585112756
PPN: HBL-HBLM3FBK
UNSPSC: 39121710

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$350.12/ EA

Qty:

Loading add to cart quantity...

Description

Heavy Duty Single Pole Industrial Grade Male-Female-Female-Female, Tri-Tap, 300/400A 600V AC/DC, Single Conductor, Pre-Wired

Features

Industrial Grade
Male-Female-Female-Female
Tri-Tap
Standard Product

Specifications

Country of Origin: China

Width: 6.500 in

Performance: Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device

Application: High Ampacity

Insulation: Insulated Body

Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact

Standard: UL 498 And UL1691

Wattage: 360000

Number Of Pins: 1) In, 3) Out- Male-Female-Female-Female

Description - Invoice: SINGLEPOLE, TRI TAP, M-F-F-F, BLACK

Harmonization Code: 8536698000

MSDS Flag: No

Current Rating: 400 A

Series: 16 Series

BOX SIZE: 3.700x15.300x8.800 (in)

Carton - Number of Sub Packs: 10

Carton - SCC-14 Next Lower Level Sub Pack: 00783585112756

Case Weight: 23.500 lb.

Current / Amperage Rating400 A

Industry Standard(s)UL 498 And UL1691

Amperage Rating400 A

ColorBlack

Number of Pins1) In, 3) Out- Male-Female-Female-Female

Special FeaturesStandard Product

TypeTees and 3-Fers

Voltage Rating Description600V AC/DC

Style3-Fer Male-Female-Female-Female

Freight Class Code06168002

Image Actual Or RepresentativeA

Replaced Catalog NumberHBL3TAP

MaterialBrass and Elastomer

Base Unit of MeasureEA

Carton - Gross Weight per Pack24.100 lb.

Carton - Pack DescriptionCarton

Carton - Total Units10 EA

Certifications

EU RoHS Indicator: Contact Manufacturer
