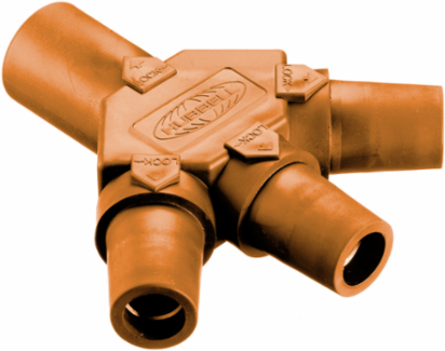

Bryant HBLM3FO Heavy Duty Single Pole Tri-Tap Connector 400A 600V AC/DC Male-Female-Female-Female
Bryant HBLM3FO Heavy Duty Single Pole Tri-Tap Connector 400A 600V AC/DC Male-Female-Female-Female
- MPN: HBLM3FO
- UPC: 783585112794
- PPN: HBL-HBLM3FO
- UNSPSC: 39121710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$350.12/ EA
Description
Heavy Duty Single Pole Industrial Grade Male-Female-Female-Female, Tri-Tap, 300/400A 600V AC/DC, Single Conductor, Pre-Wired
Features
- Industrial Grade
- Male-Female-Female-Female
- Tri-Tap
- Standard Product
Specifications
Specifications
- Country of Origin
- China
- Width
- 2.800 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
- Application
- High Ampacity
- Insulation
- Insulated Body
- Operating Temperature
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Standard
- UL 498 And UL1691
- Wattage
- 360000
- Number Of Pins
- 1) In, 3) Out- Male-Female-Female-Female
- Description - Invoice
- SINGLEPOLE, TRI TAP, M-F-F-F, ORANGE
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material
- Brass and Elastomer
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 22.900 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
Current / Amperage Rating400 A
Industry Standard(s)UL 498 And UL1691
Amperage Rating400 A
ColorOrange
Number of Pins1) In, 3) Out- Male-Female-Female-Female
Special FeaturesStandard Product
TypeTees and 3-Fers
Voltage Rating Description600V AC/DC
Style3-Fer Male-Female-Female-Female
Freight Class Code06168002
Image Actual Or RepresentativeA
Current Rating400 A
Series16 Series
BOX SIZE4.100x15.400x8.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585112794
Case Weight22.900 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
