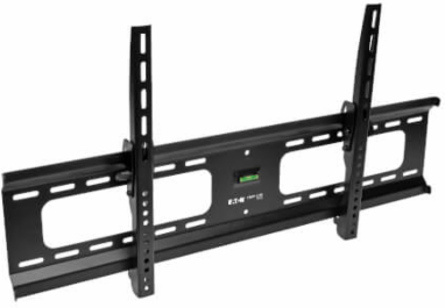

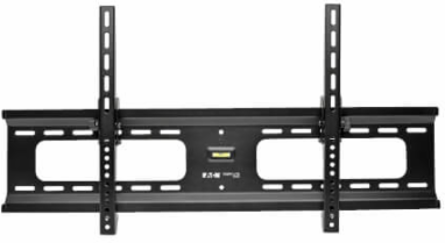

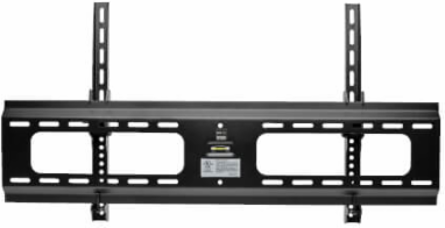

Tripp Lite DWT3780XUL Heavy-Duty Tilt Wall Mount 37-80 Inch TVs, Max 165 lbs, UL Certified, VESA Patterns
- MPN: DWT3780XUL
- UPC: 037332203991
- PPN: TRP-DWT3780XUL
CAD
$216.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Heavy-Duty Tilt Wall Mount for 37" to 80" TVs and Monitors, Flat or Curved Screens, UL Certified

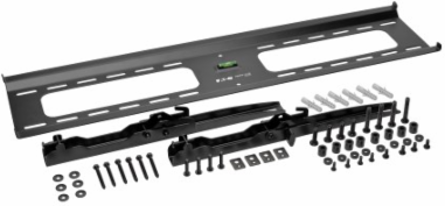

Features
- Wall plate
- (2) Adapter brackets
- (4) M5 x 14 screws
- (4) M6 x 14 screws
- (4) M6 x 30 screws
- (4) M8 x 30 screws
- (4) M8 x 50 screws
- (4) Washers
- (8) Small spacers
- (8) Big spacers
- (6) Anchor bolts
- (6) Concrete anchors
- (6) D6 washers
- Owner's manual
Documentation & Downloads
Specifications
Additional
| Maximum Screen Size | 80 in. |
|---|---|
| Maximum Weight Capacity | 165 lb. |
| Distance from Wall | 1.81 in. |
| Unit Weight | 7.9 lb |
| Mounting Location | Wall |
| VESA Pattern | 200x200 mm, 200x300 mm, 200x400 mm, 300x200 mm, 300x300 mm, 300x400 mm, 400x200 mm, 400x300 mm, 400x400 mm, 500x300 mm, 500x400 mm, 600x300 mm, 600x400 mm, 800x300 mm, 800x400 mm |
| Warranty | 5-year limited |
| Cord Management | No |
| Minimum Screen Size | 37 in. |
|---|---|
| Degrees of Motion | -10 to 0 Tilt |
| Unit Dimensions | 33.46 x 1.81 x 7.99 in. |
| Material | Steel |
| Color | Black |
| Compliance | RoHS3, REACH, CE |
| Tools Necessary | Yes |
| Number of Displays | 1 |
