Shrink-Kon

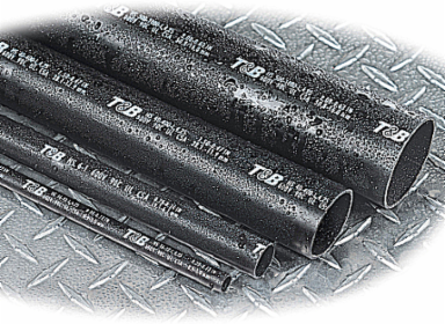

Shrink-Kon HS500-1000L Heavy-Wall Heat-Shrinkable Tubing

Heavy-Wall Heat-Shrinkable Tubing
  • MPN: HS500-1000L
  • PPN: T-B-HS500-1000L

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$43.35/ EA

Description

Heavy-Wall Heat-Shrinkable Tubing for Cable Range 250 - 500 kcmil, Expanded Diameter 2 Inch, Length 15 Inch, 600 Volt, 90 Degrees Continuous Use, Cross-Linked Polyolefin with Thermoplastic Adhesive Liner, Black

Features

  • Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced.
  • Withstands severe mechancial requirements of U.R.D., submersible, and direct burial installations.
  • Tubing, featuring an internally applied sealant, offers protection against moisture, and may be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials.

Specifications

Packaging

Outer Quantity
2
Weight Uom
55 lbs. per 100
Outer Dimensions (inches)13x6x13

European Specifications (ETIM)

ETIM
EC000217 Shrink tubing
Model
Thick-walled
Inner diameter before heat-shrink
50.8mm
Nominal diameter inch
2 inch
Length
0.381m
Colour
Black
Halogen free
N
Printable
N
TypeHeat-shrink
Shrink rate3:1
Inner diameter after heat-shrink16.002mm
Wall thickness after shrinking3.556mm
Operation temperature-55-+110°C
MaterialPolyolefin (PO-X)
With inner glueN
UL approvalY

North American Specifications (UNSPSC)

UNSPSC
39121723 Heat shrinkable tube
Brand Name
Shrink-Kon
Special Features
Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced.
Length
15 in ; 381 mm
IGCC5073 Heat shrinkable tube
TypeHeavy-Wall Heat-Shrinkable Tubing
Voltage Rating600V
ColorBlack

Downloads
