Shrink-Kon HSB175-82-4 Heavy-Wall Heat-Shrinkable Tubing
- MPN: HSB175-82-4
- UPC: 786210872209
- PPN: T-B-HSB175-82-4
CAD
$138.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

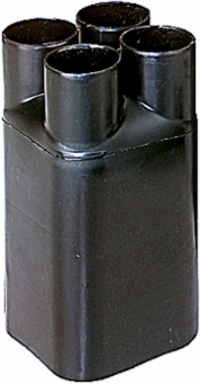

Heat-Shrinkable HSB Series Breakout Boots for Cable Range 4 AWG - 600 MCM, Expanded Dia. 2.36, Length 7.95 inch, rated for 600 Volt, 90 degrees continuous use, Material: Cross-linked polyolefin with thermoplastic adhesive liner, Black
Features
- Boots for 2-, 3- and 4-way cable breakouts.
- Thermoplastic Adhesive Liner for complete environment protection and insulation.
- Strain relief and mechanical protection.
Specifications
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 13.38 lbs. per 100 |
| Outer Dimensions (inches) | 9x6x12 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121723 Heat shrinkable tube |
|---|---|
| Brand Name | Shrink-Kon |
| Special Features | Boots for 2-, 3- and 4-way cable breakouts. |
| Thickness | 0.16 |
| Color | Black |
| IGCC | 5073 Heat shrinkable tube |
|---|---|
| Type | Heavy-Wall Heat-Shrinkable Tubing |
| Shrink Ratio | 3:1 |
| Length | 7.95 in ; 201.93 mm |
European Specifications (ETIM)
| ETIM | EC002464 Spreader cap |
|---|---|
| Model | For 4-core cables |
| Diameter shaft after shrink | 30mm |
| Inner diameter finger before shrink | 22.9mm |
| Operation temperature | -55-+100°C |
| Type | Heat-shrink |
|---|---|
| Diameter shaft before shrink | 60mm |
| Total length after shrink | 202mm |
| Inner diameter finger after shrink | 6.4mm |
