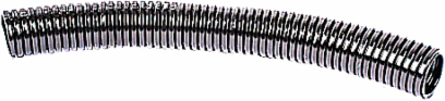

Adaptaflex PAFH16/BL/50M Heavyweight Conduit 3/8 Inch, 50 Meters, Nylon 6, OD 15.8mm, IP68
- MPN: PAFH16/BL/50M
- UPC: 786210241289
- PPN: T-B-PAFH16/BL/50M
CAD
$578.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavyweight Conduit, Nominal Conduit Size 16mm, NW Conduit Size 13, Fine Conduit Pitch, Outside Diameter 15.8mm, Inside Diameter 11.3mm, Static Bend Radius 45mm, Reel Length 50 Meters, Polyamide (Nylon) 6, Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Nominal size in inch
- 3/8 inch
- Inner diameter
- 11.3mm
- Operating temperature
- -40-+120°C
- Fire resistance in accordance with UL94
- V2
- Colour
- Black
- Bending strength
- Flexible
- Halogen free
- Y
- Approved according to LUL/British Standard
- Y
- Approved according to NF F 16-101
- Y
Nominal diameter16mm
Outer diameter15.8mm
MaterialPolyamide 6
Degree of protection (IP)IP68
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedN
Approved according to DIN EN 61386-23Y
Approved according to Lloyd's Register TAY
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 1
- Weight Uom
- 5.07 lbs. Each
Inner Dimensions (inches)24.5x24.5x5
Outer Dimensions (inches)48x40x50
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Special Features
- Very High UV Protection and Fatigue Life
- Trade Size
- 16mm
- Inside Diameter
- 11.3mm
- Radius
- 45mm
- Material
- Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeHeavyweight Conduit with Fine Pitch
ApplicationIndoors / Outdoors - Rail, Heavy Industrial, Buildings & Machinery
Outside Diameter15.8mm
Length50 m
FlexibilityMedium
ColorBlack
