Heavyweight Conduit 13mm, Polyamide 6, UV Resistant, 100 Feet
Adaptaflex

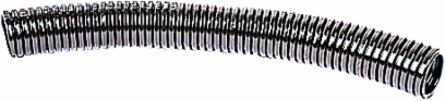

Adaptaflex PAFH13/BL/100FT Heavyweight Conduit 13mm, Polyamide 6, UV Resistant, 100 Feet

  • MPN: PAFH13/BL/100FT
  • UPC: 786210241265
  • PPN: T-B-PAFH13/BL/100FT

CAD

$210.52

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Heavyweight Conduit, Nominal Conduit Size 13mm, NW Conduit Size 10, Fine Conduit Pitch, Outside Diameter 13.0mm, Inside Diameter 9.0mm, Static Bend Radius 35mm, Reel Length 100 Feet, Polyamide (Nylon) 6, Black

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC
39131706 Electrical conduit
Brand Name
Adaptaflex
Special Features
Very High UV Protection and Fatigue Life
Trade Size
13mm
Inside Diameter
9.0mm
Radius
35mm
Material
Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeHeavyweight Conduit with Fine Pitch
ApplicationIndoors / Outdoors - Rail, Heavy Industrial, Buildings & Machinery
Outside Diameter13.0mm
Length100 ft
FlexibilityMedium
ColorBlack

European Specifications (ETIM)

ETIM
EC001175 Corrugated plastic hose
Outer diameter
13mm
Material
Polyamide 6
Degree of protection (IP)
IP68
UV resistant
Y
Sheathing material
Not sheathed
Lengthwise slotted
N
Approved according to DIN EN 61386-23
Y
Approved according to Lloyd's Register TA
Y
Nominal diameter13mm
Inner diameter9mm
Operating temperature-40-+120°C
Fire resistance in accordance with UL94V2
ColourBlack
Bending strengthFlexible
Halogen freeY
Approved according to LUL/British StandardY
Approved according to NF F 16-101Y

Packaging

Inner Quantity
1
Outer Dimensions (inches)
1x1x1
Outer Quantity1
Weight Uom2.35 lbs. Each
