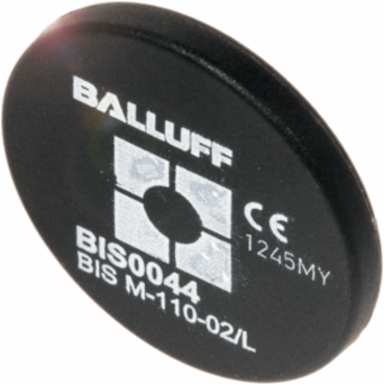

Balluff BIS M-110-02/L HF data carriers (13.56 MHz) BIS M-110-02/L
- MPN: BIS M-110-02/L
- PPN: BAL-BIS0044
CAD
$28.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
BIS M uses high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and/or DIN ISO 14443. The wide variety of passive data carriers with various dimensions, configurations, memory sizes, operating temperatures, materials, antenna technology, mounting options and ranges allows you to tackle nearly any technical task. BIS M is the most robust system with absolute data security.
Documentation & Downloads
Specifications
Key Specifications
- Product Group
- HF (13.56 MHz)
- Antenna type
- round
- Memory type
- FRAM
- User data, read/write
- 2000 Byte
- Storage temperature temporary
- 140 °C 1x100 h;-40 °C…90 °C 1x1000 h
- Housing material
- PA 6
- Installation
- metal-free (clear zone)on metal
DimensionØ 20 x 2.8 mm
UID serial number, read-only8 Byte
Supported data carrier typesDIN ISO 15693
Storage temperature-25-85 °C
Ambient temperature-25-85 °C
IP ratingIP68
Approval/ConformityCE, WEEE
