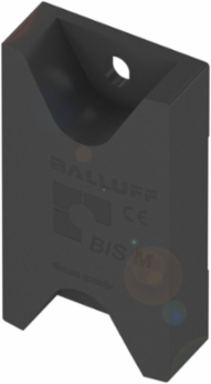

Balluff BIS M-155-20/A HF data carriers (13.56 MHz) BIS M-155-20/A
- MPN: BIS M-155-20/A
- PPN: BAL-BIS0117
CAD
$91.13
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BIS M uses high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and/or DIN ISO 14443. The wide variety of passive data carriers with various dimensions, configurations, memory sizes, operating temperatures, materials, antenna technology, mounting options and ranges allows you to tackle nearly any technical task. BIS M is the most robust system with absolute data security.
Documentation & Downloads
Specifications
Key Specifications
| Product Group | HF (13.56 MHz) |
|---|---|
| Antenna type | Rod |
| Memory type | FRAM |
| User data, read/write | 8192 Byte |
| Ambient temperature | -25-70 °C |
| Installation | metal-free (clear zone)on metal |
| Dimension | 22 x 9.7 x 40 mm |
|---|---|
| UID serial number, read-only | 8 Byte |
| Supported data carrier types | DIN ISO 15693 |
| Storage temperature temporary | -25-130 °C 1x1000 h |
| Housing material | PPS, GF40, With EP potting |
| Approval/Conformity | CE, WEEE |
