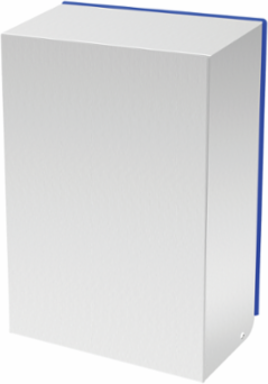

nVent Hoffman HH05SS04004X Filter Fan Shroud Type 4/4X, 12.33x7.70x3.40 Inch, SS304, NEMA Type 4
- MPN: HH05SS04004X
- UPC: 783510359522
- PPN: HOF-HH05SS04004X
CAD
$351.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The 4/4X Filter Fan Shroud extends electronics life by mitigating dust and water ingress. This Filter Fan Shroud Type 4/4X HH05, HH05SS04004X item finish Brushed with a material of SS304.
Features
- Hinge allows the shroud to be opened at a 45-degree angle for easy filter replacement
- Hinge design also allows for easy and complete removal for cleaning
- 10-degree, sloped top design
- Only reduces filter fan airflow by 10 percent
- FDA approved blue silicone gasket that is easily replaceable
- Pre-drilled side holes allow for locking provision on side
Documentation & Downloads
Specifications
Additional
| Protection Rating | NEMA Type 4 |
|---|---|
| Finish | Brushed #3 |
| Weight | 6.4 lb |
| Height | 313 mm |
| Type | 4/4X |
| Top Design Angle | 10 degrees |
| Gasket Material | FDA approved blue silicone |
| Mounting | Pre-drilled side holes for locking provision |
| Material | Stainless Steel 304 |
|---|---|
| Thickness | 1.52 in. |
| Depth | 86 mm |
| Width | 196 mm |
| Dimensions | 12.33 x 7.70 x 3.40 in |
| Airflow Reduction | 10 percent |
| Hinge Opening Angle | 45 degrees |
